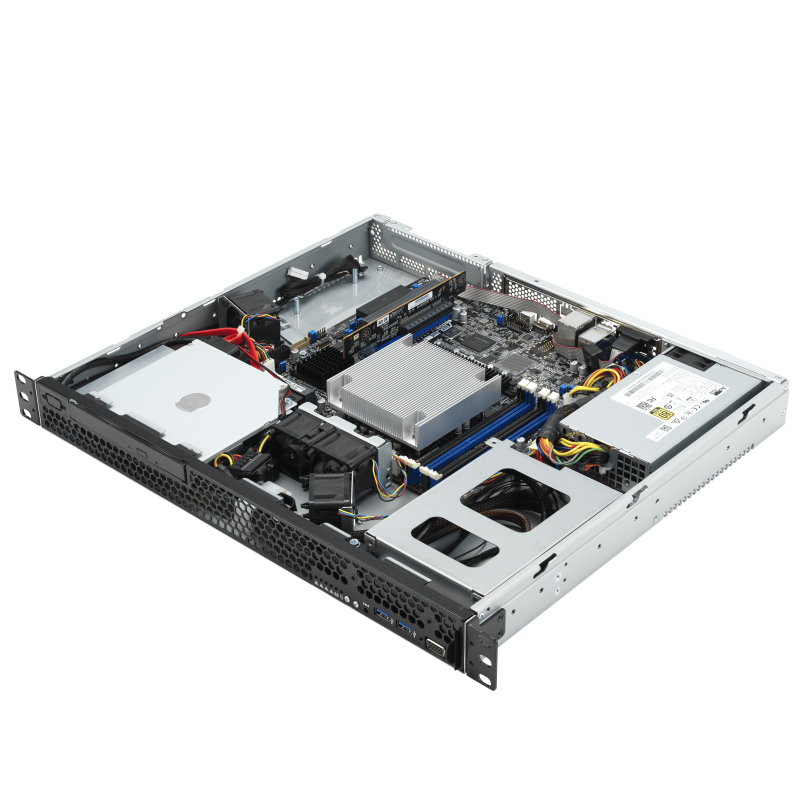

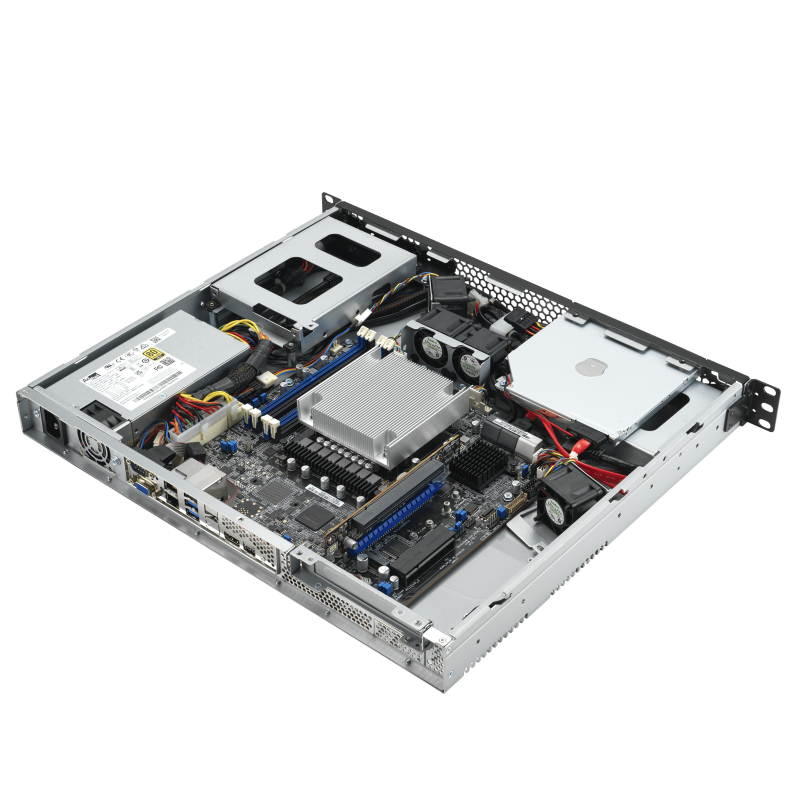

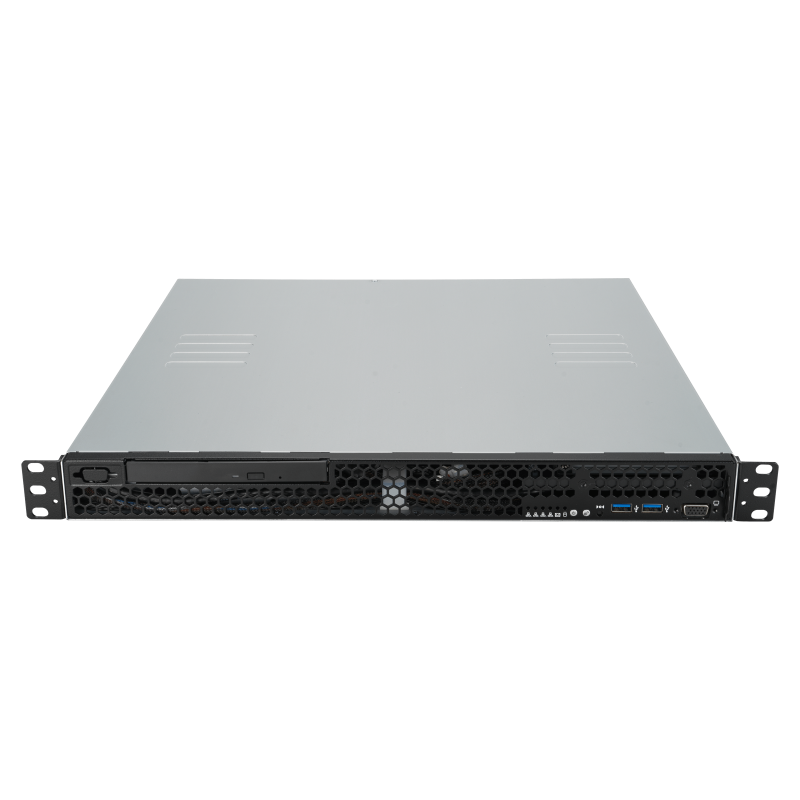

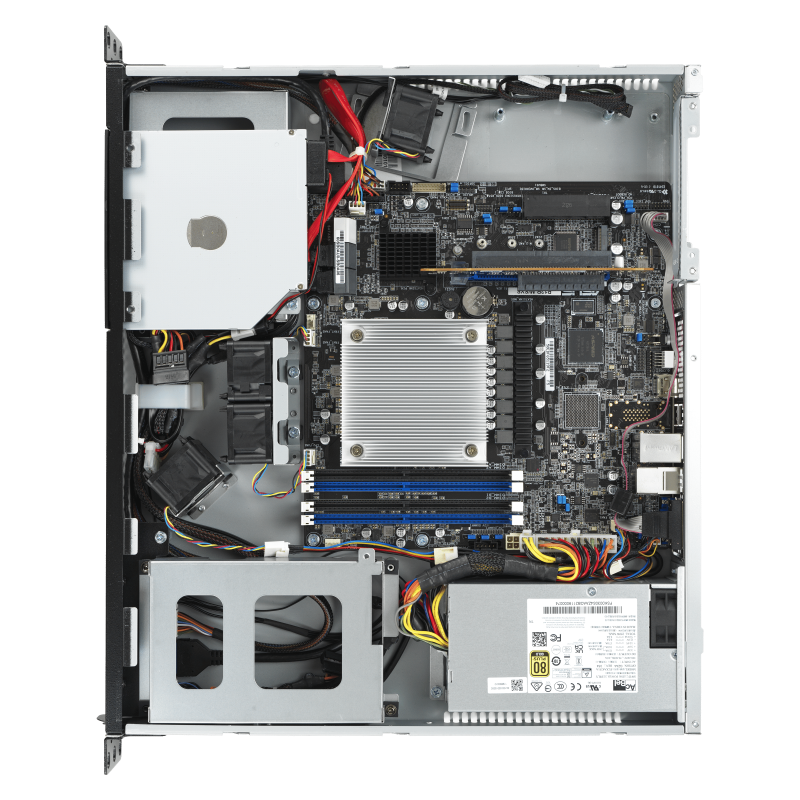

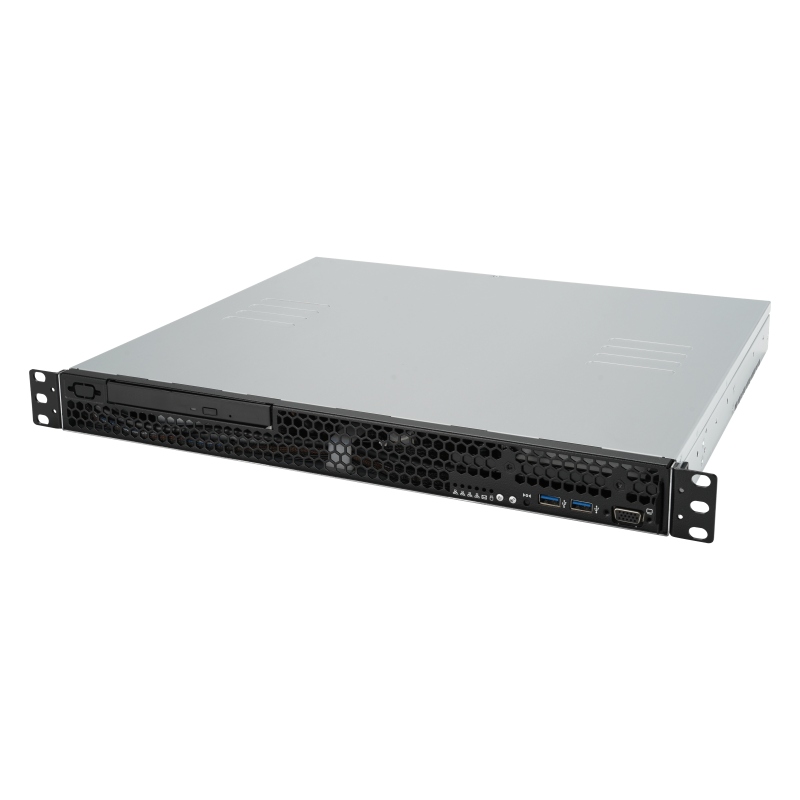

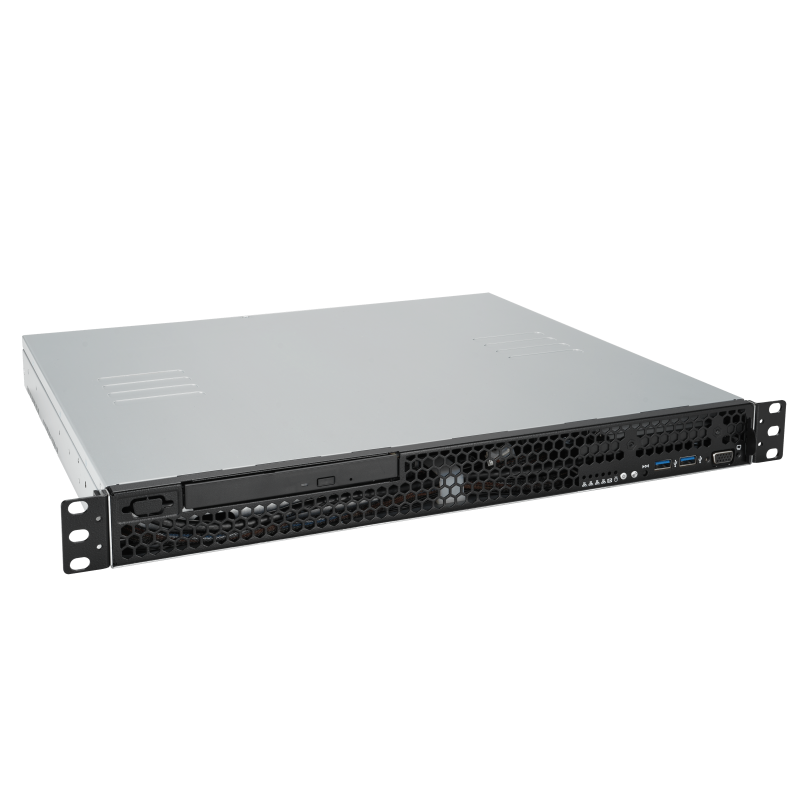

Intel® Xeon® E-2300 1U 浅深度服务器，配备四个DIMM、一个M.2、两个PCIe 4.0插槽、两个NVMe、双LAN、平台固件韧性（PFR）和ASUS ASMB10-Ikvm
- 采用Intel® Xeon® E平台
- 支持95W CPU和最高128GB內存
- 灵活的储存扩充能力，可容纳多达5个储存装置
- M.2插槽，可安装2280尺寸的SSD以提供更快的开机速度
- 双Intel® 以太网络，支持Teaming功能
- 支持PCIE 4.0
- 完整的I/O联机能力，可满足不同需求
- 支持ASUS Control Center，提供完善的服务器管理
- 内置ASUS ASMB10-iKVM可搭配ASPEED AST2600控制器进行带外管理
规格参数
| 处理器 / 系统总线 |
1 x Socket LGA1200 Intel® Xeon® processor E-2300 family Intel® Pentium Processors |
|---|---|
| 代 |
E11 |
| 核心逻辑 |
Intel® C252 Chipset |
| 内存 |
Total Slots :4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type :DDR4 3200/2933/2666 UDIMM Memory Size :32GB, 16GB, 8GB, 4GB UDIMM |
| 扩展槽 |
Up to 2 slots: 1 x PCIe x16 (Gen4 x16 link) 1 x PCIe x8 (avaialble only for NVMe riser) Proprietary Slot (R/A): Option for Intel X710 10G LAN card |
| 存储 |
SATA Controller :
Intel® C252 Chipset 2 x Internal 3.5” HDD Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) |
| 硬盘位 |
with ODD: up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" (optional NVMe) disk bay Without ODD: up to 2 x3.5" disk bay or option 1x3.5"+4x2.5“(optional 2 NVMe) disk bay support1 x M.2 (up to type 2280, PCIe 3.0 x4) |
| 辅助存储器 FDD/CD/DVD |
1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD-ROM |
| 网络 |
2 x Intel® I210AT + 1 x Mgmt LAN |
| 显示功能 |
Aspeed AST2600 with 64MB VRAM |

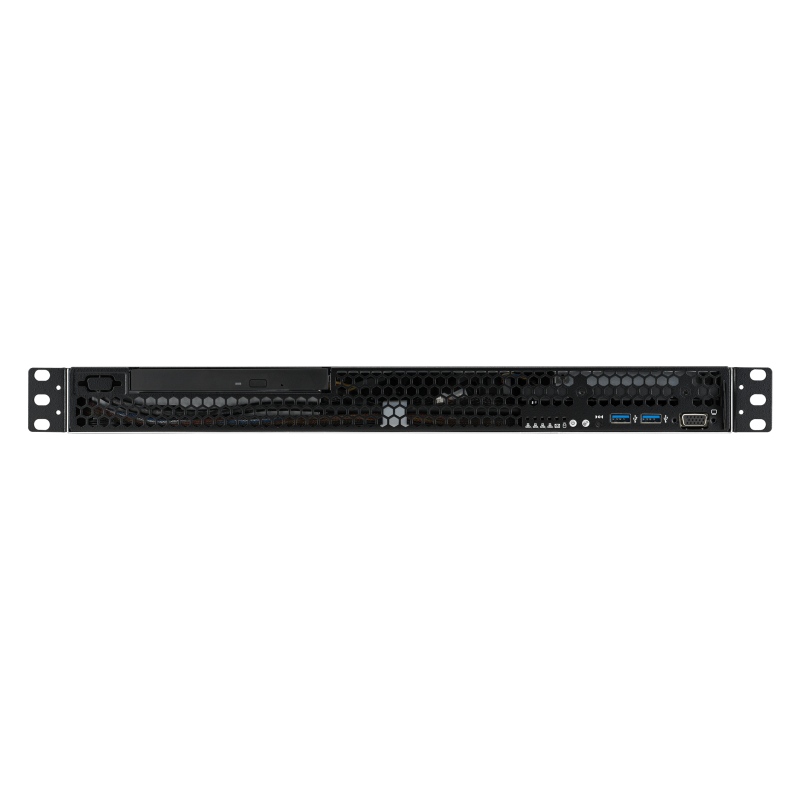

| 前置 I/O 接口 |
1 x VGA port(Must support by ASMB10) 2 x USB 3.2 Gen1 ports |

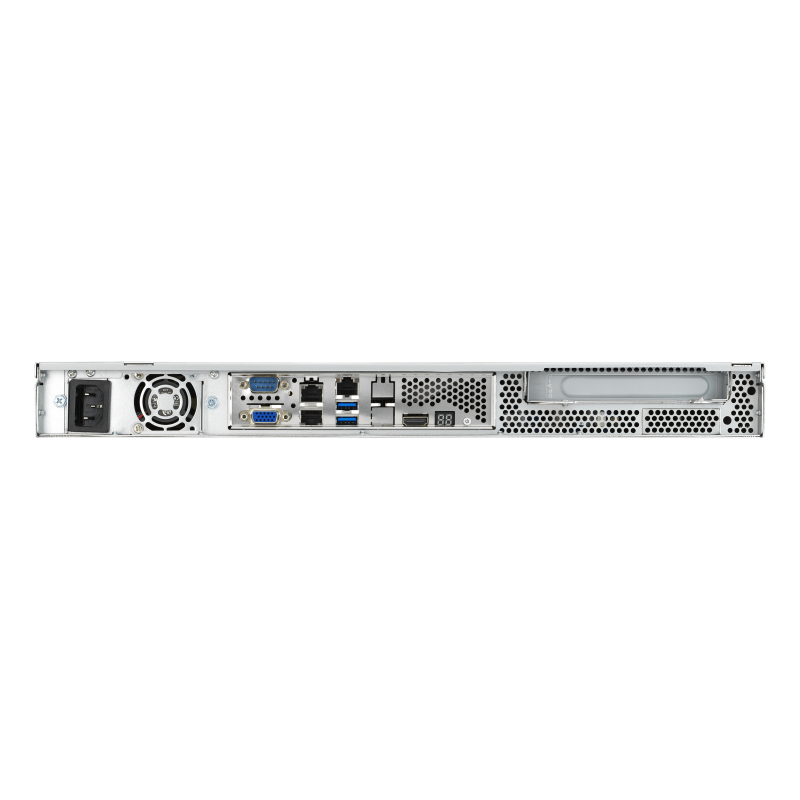

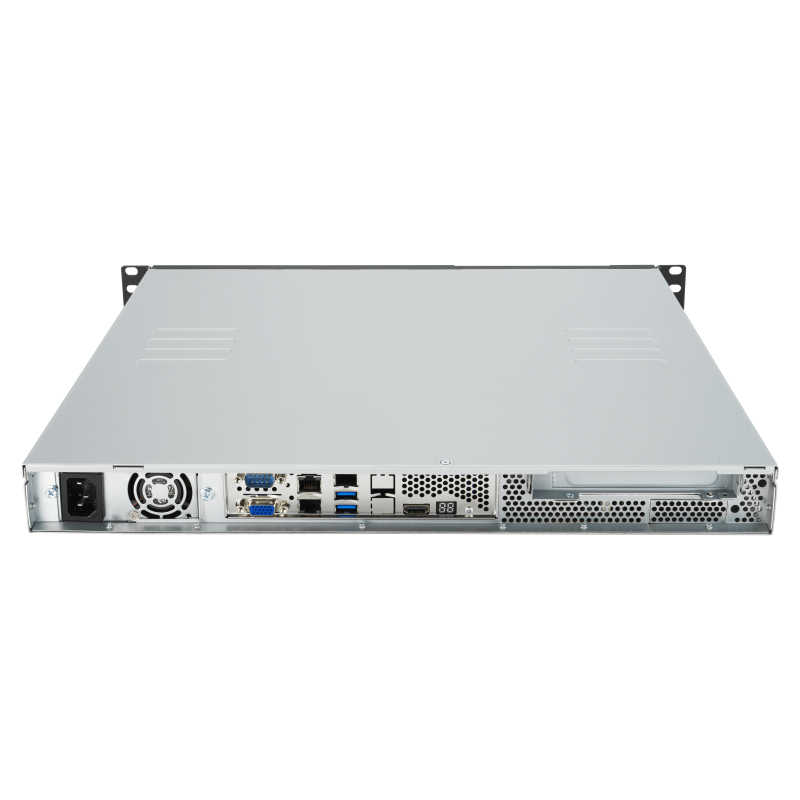

| 背部 I/O 接口 |
2 x USB 3.2 Gen 2 ports 1 x VGA port(Must support by ASMB10) 1 x HDMI port from CPU 1 x COM port 2 x RJ-45 ports 1 x RJ-45 ports (One for ASMB10-iKVM)(Optional) |
| Switch/LED |
Rear Switch/LED:
1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED:1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-2 LED |
| OS 支持 |
CentOS 7.6 SUSE Enterprise 15 SP2 |
| 管理解决方案 |
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet |
| 合规性认证 |
BSMI, CE, FCC(Class A) |
| 外形尺寸 |
380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" 1U |
| 重量 |
Net Weight: 7.5 Kg Gross Weight : 11.72 KG |
| 电源 |
Single 250W 80 PLUS Gold Single 350W 80 PLUS Gold |
| 环境 |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |

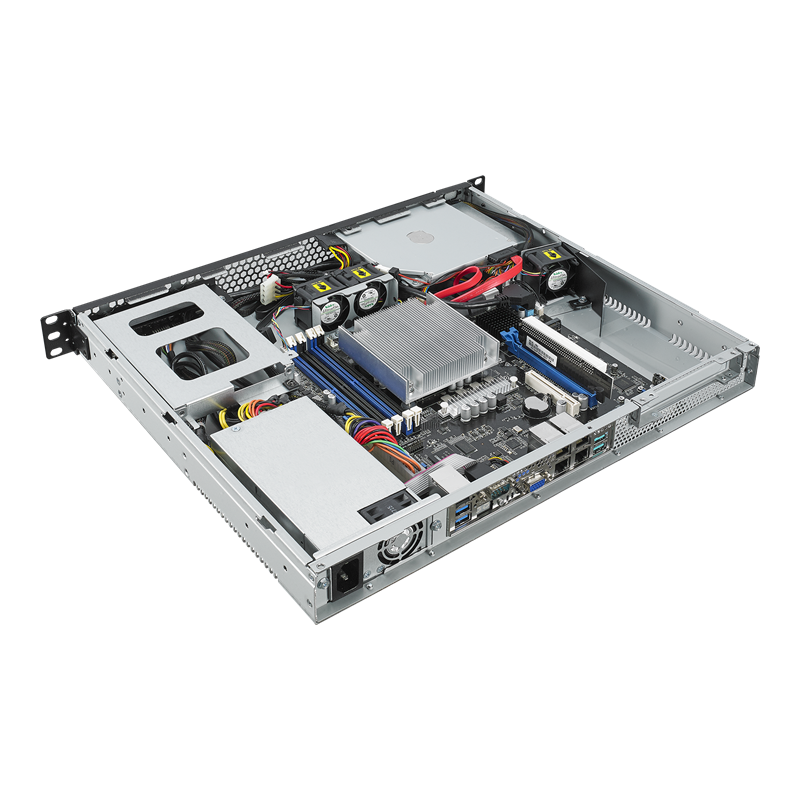

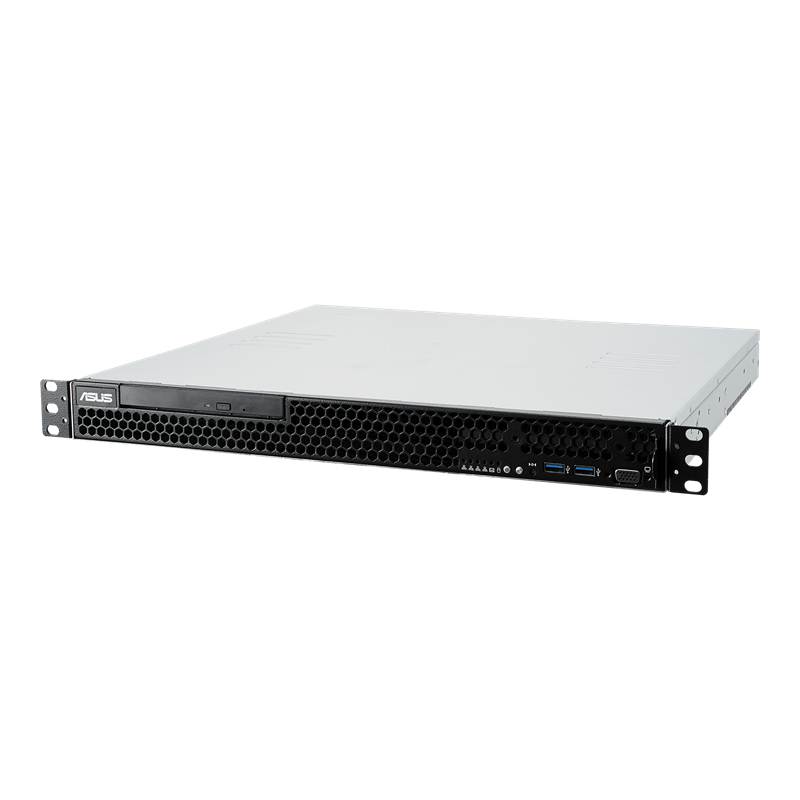

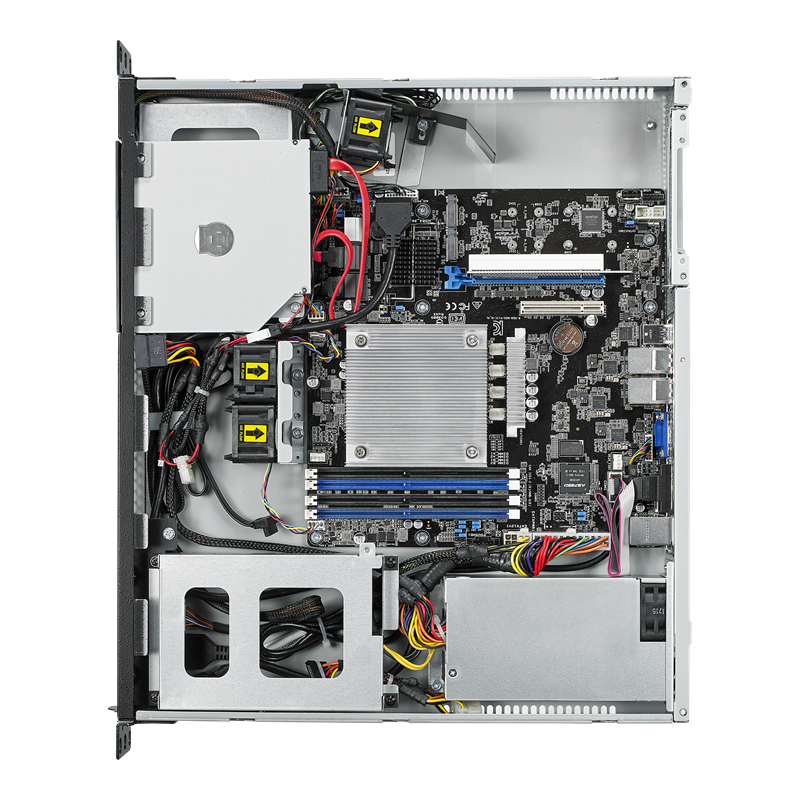

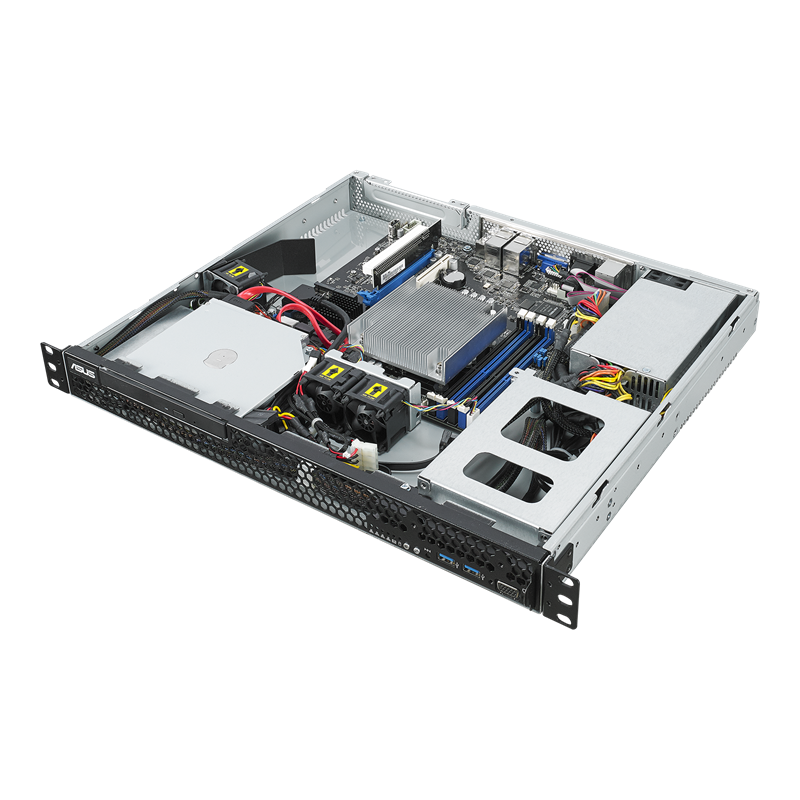

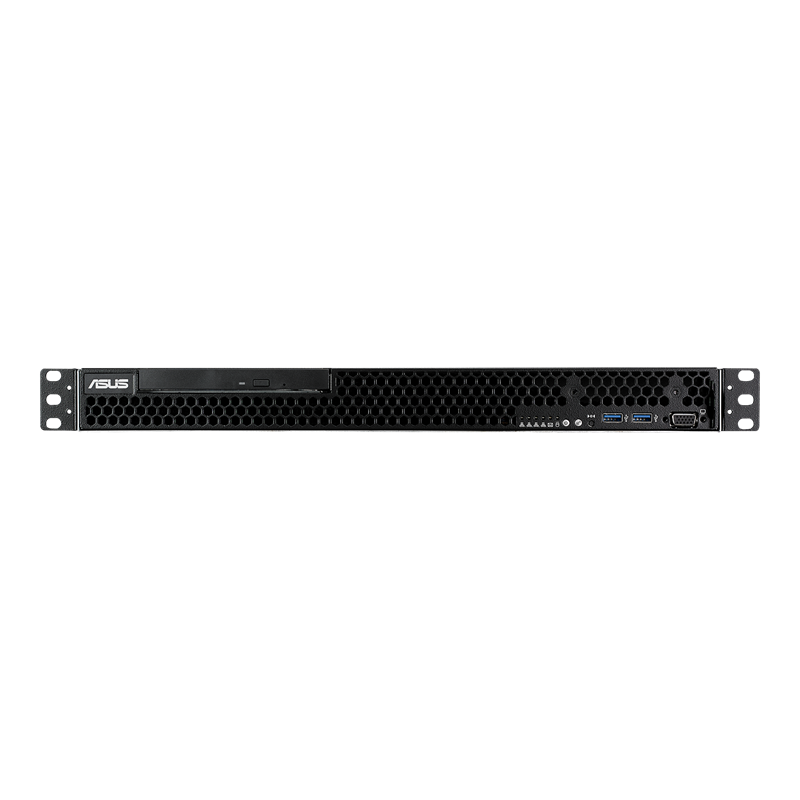

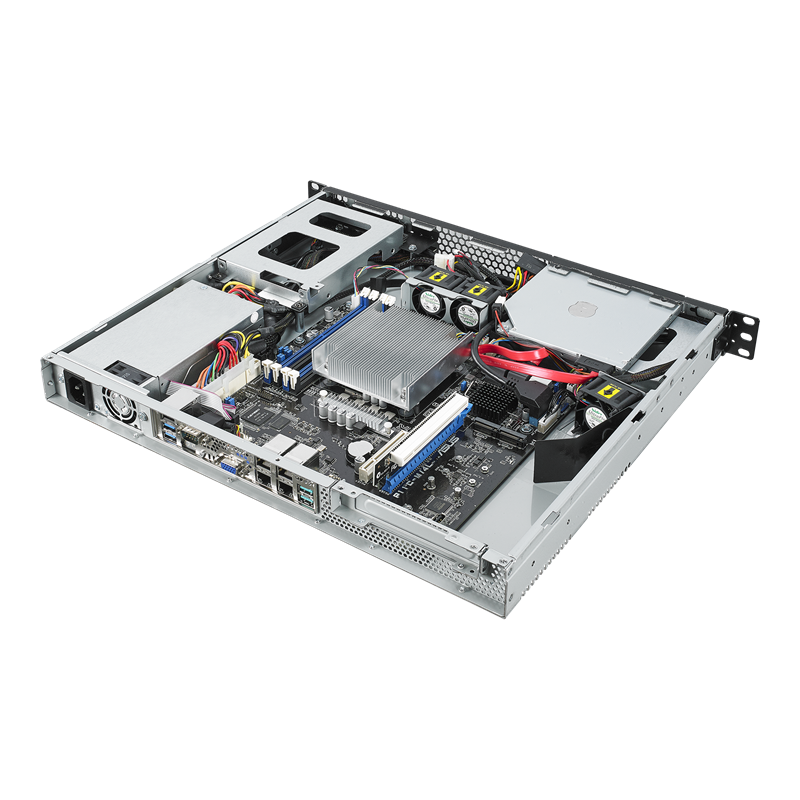

专为存储灵活性及四个网口而设计的英特尔® 至强® E 机架优化 1U 服务器
- 搭载英特尔® 至强® E 平台
- 支持 95W CPU 及高达 64GB 内存 (4 DIMM)
- 多达 5 台存储设备的灵活存储扩展能力
- 两个 M.2 插槽可容纳 22110 尺寸规格的 SSD，提供更快的开机速度
- 四个支持群组功能的英特尔® 千兆以太网口
- 全方位 I/O 连接能力，符合各式各样的需求
- 通过 ASUS Control Center 全面管理服务器
- 选购的 ASMB9-iKVM 模块确保全时远程监控与诊断
- 高速 mini-SAS HD 连接
规格参数
| 处理器 / 系统总线 |
1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor |
|---|---|
| 代 | E10 |
| 核心逻辑 | Intel® C242 Chipset |
| 内存 |
Total Slots : 4 (2-channel) Capacity :Maximum up to 128GB UDIMM Memory Type :2666/2400 UDIMM non ECC and with ECC Memory Size :32GB, 16GB, 8GB, 4GB UDIMM |
| 扩展槽 |
Total PCI/PCI-X/PCIe/PIKE Slots: 1 1 x PCIe x16 (x16 Gen3 Link) |
| 存储功能（视出货而定） |
SATA Controller :
Intel® C242 Chipset 2 x Internal 3.5” HDD 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1 ) |
| 硬盘位 |
with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support |
| 辅助存储器 FDD/CD/DVD |
1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW |
| 网络功能 |
4 x Intel® I210AT + 1 x Mgmt LAN |
| 显示功能 |
Aspeed AST2500 with 32MB VRAM |
| 前置 I/O 接口 |
2 x USB 3.0 ports 1 x VGA port |

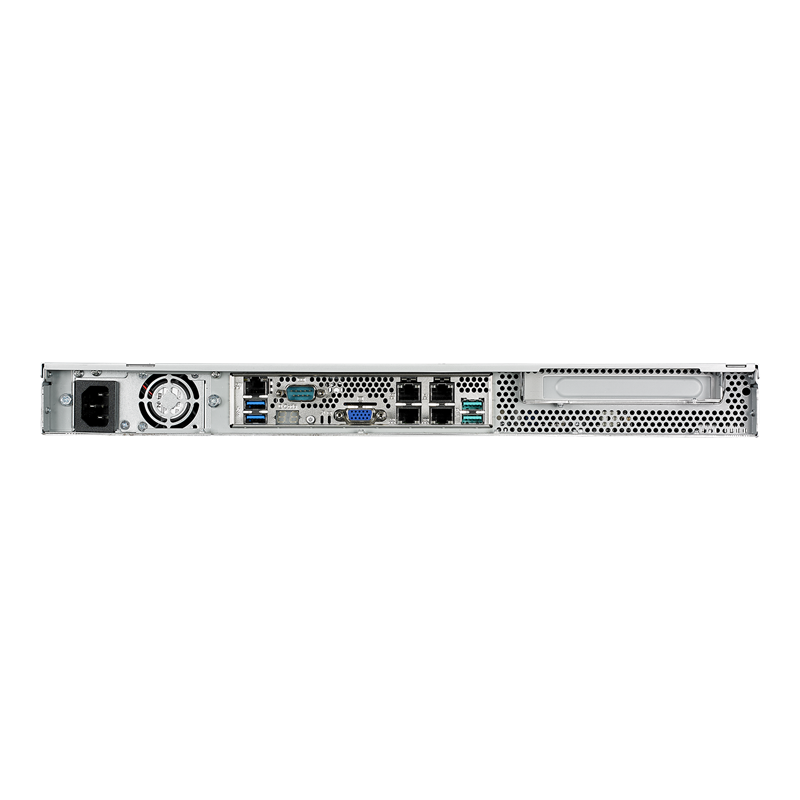

| 背部 I/O 接口 |
1 x External Serial Port 4 x RJ-45 ports 2 x USB 3.1 ports 2 x USB 3.0 ports 1 x VGA port 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional) |
| Switch/LED |
Rear Switch/LED:
1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED:1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED |
| OS 支持 |
CentOS 7.4 RHEL 6.9 SUSE Linux Enterprise Server 12 SP3 Ubuntu 18.04 LTS |
| 管理解决方案 |
ASUS Control Center Enterprise (Optional) Optional ASMB9-iKVM for KVM-over-IP |
| 合规性认证 |
BSMI, CE, RCM, FCC(Class B) |
| 外形尺寸 |
380mm x 430mm x 44mm 14.96" x 16.93" x 1.73" 1U |
| 重量 |
Net Weight: 7.5 Kg Gross Weight: 11.72 Kg |
| 电源 |
Single 250W 80 PLUS Gold Power Supply Rating: 100-240Vac,4A ,50-60Hz, Class I Single 350W 80 PLUS Gold Power Supply Rating: 100-240Vac,6A-3A ,50-60Hz, Class I |
| 环境 |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
