AMD EPYC™ 9004 单处理器 1U 服务器支持多达 24 DIMM, 16 NVMe, 3个 PCIe® 5.0 插槽, 2个 M.2, OCP 3.0, 2个单插槽 GPU, 以及 ASUS ASMB11-iKVM
- 强大性能: 采用 AMD EPYC 9004 处理器搭配 128 Zen 4c 核心, 12通道, 最高可达 4800 MHz DDR5，每插槽最高支持 400W TDP
- 出色的存储和扩展设计: 前面板最高支持 12 个全闪 NVMe 硬盘，中部硬盘位支持 4 个 NVMe, 以及 3个 PCIe 5.0，以提供更高的带宽和系统升级
- 灵活的网络模块设计: 板载 LAN 模块, 以及 OCP 3.0 模块及后侧 PCIe 5.0 插槽，实现更快的连接性能
- 先进的风冷散热解决方案: 采用增强型卷风冷却(EVAC) 散热器支持更高的 TDP
- 增强的 IT 基础设施管理: ASUS ASMB11-iKVM 远程控制可搭配 ASPEED AST2600, ASUS Control Center IT 管理软件和硬件级信任根解決方案
- 助力加速 AI 和 HPC 工作负载: 高达2个双插槽 GPU
规格参数
| 处理器 / 系统总线 |
1 x Socket SP5 (LGA 6096) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology AMD EPYC™ 9004 Series Processors (up to 400W) |
|---|---|
| 内存 |
24 x DIMM slots DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM 1DPC up to 4800 2DPC up to 4000(1R+1R) 2DPC up to 3600(1R+2R)/ (2R+2R) Maximum 6144GB |
| 扩展槽 |
Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) 1 x OCP3.0 socket (Gen5 x16 link) |
| 存储功能（视出货而定） |
Storage Controller :
CPU Integrated Optional kits Controller :ASUS PIKE II 3008-8i 8-port SAS 12G HBA card |
| 硬盘位 |

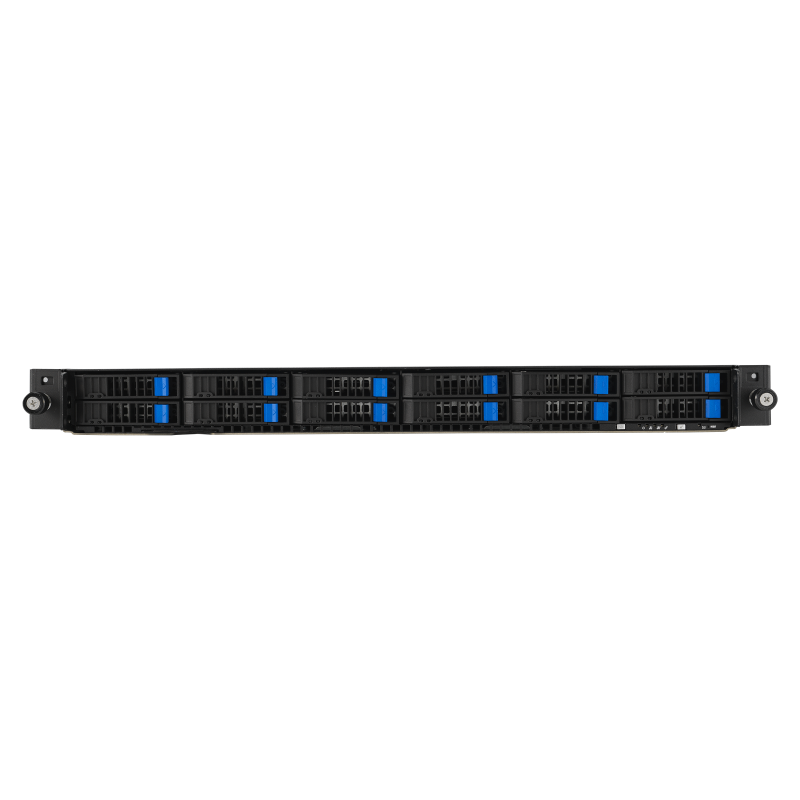

Front bays:
12 x 2.5” Hot-swap Storage Bays 12 x SATA/SAS/NVME Optional 4 x 2.5” Internal Storage Bays 4 x SATA/NVME *SAS support only from optional SAS HBA/RAID card 2 x M.2 connectors |
| 网络(视出货而定) |
1 x Dual Port Intel I350-AM2 GbE LAN Controller 1 x Management Port |
| 显示功能 |
Up to 2 single-slot GPU cards *Internal Storage Bays SKU only support 1 single-slot GPU card |
| 支持多显卡 |
NVIDIA L40 48GB * 1 Nvidia L4 24GB * 1 |

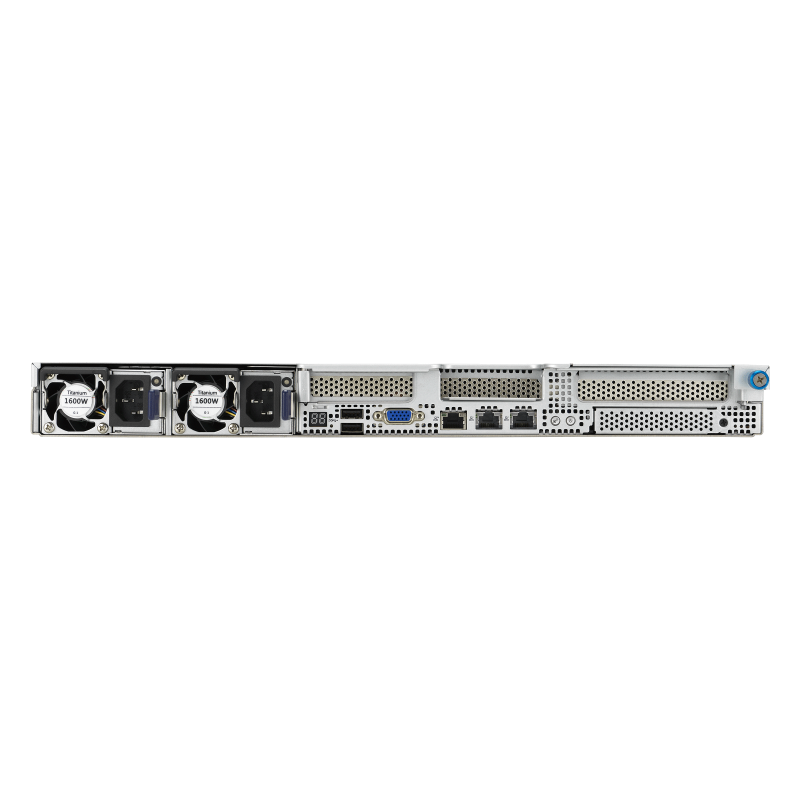

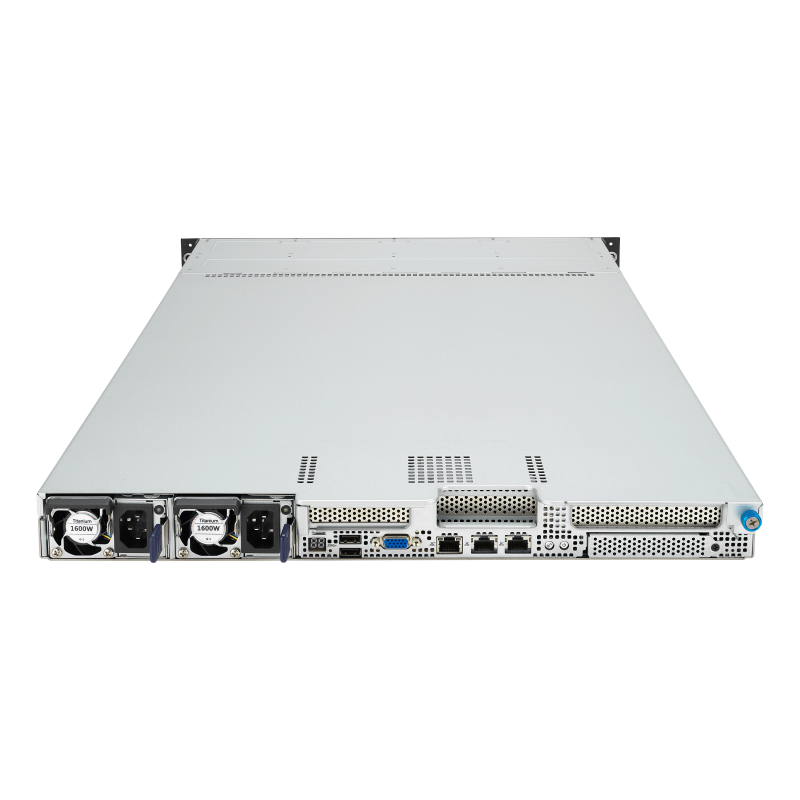

| 背部 I/O 接口 |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x Management port 2 x 1GbE LAN ports |
| 开关/LED |
Front :
1 x Power Button/LED 1 x Location Button/LED 1 x Message LED LAN 1-2 LED Rear :1 x Port80 LED (Q-Code) 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED |
| OS 支持 | |
| 管理功能 |
ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| 合规性认证 |
BSMI, CB, CE, RCM, FCC(Class A) |
| 外形尺寸 |
842.5mm x 449mm x 43.85mm 33.17" x 17.68" x 1.73" 1U |
| 重量 |
(approximate) Net Weight: 14.16 Kg Gross Weight: 19.16 Kg |
| 电源 |
1+1 Redundant 1600W 80 PLUS Titanium Power Supply 1+1 Redundant 1600W/1200W 80 PLUS Platinum Power Supply |
| 环境 |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) Note Operating Temperature based on configurations |
| 可选配件 |
Rail Kit:
Tool-less Friction Rail Kit 1.2m Half Extension Ball bearing Type Rail Kit 1m Half Extension Ball bearing Type Rail Kit 1U Height Full Extension Ball bearing Type Rail Kit *Please consult sales if cable arm needed. 1U Front Bezel |
