AMD EPYC™ 7003 1U 双插槽服务器支持高达 32 DIMM、一个双插槽 GPU、4 个 NVMe、3 个 PCIe 4.0 插槽、OCP 3.0、M.2 及 ASMB10-iKVM
- 支持 AMD EPYC 7003 处理器含 64 核心、128 线程，每插槽支持 280 瓦 TDP
- GPU 优化设计可搭载一个双插槽或两个单插槽 GPU，以处理 AI 工作负载
- 正面面板灵活的 4 个 NVMe/SATA/SAS 磁盘驱动器，专为企业应用程序而设计
- 最高搭载 3 个 PCIe® 4.0 插槽，以提供更高的带宽及更快的数据传输速率
- 弹性的内建 LAN 模块设计可提供 4 个 1 Gb LAN 或 2 个 10 Gb LAN 选项
- 弹性散热解决方案可协助数据中心达到更低的电力使用效率 (PUE) 及上佳的 TCO
- 内建 ASUS ASMB10-iKVM 可搭配 ASPEED AST2600 控制器进行频外管理
- 整合的 PFR FPGA 可做为平台信任根解决方案，以提供固件弹性
- 以 1600W 80 Plus Platinum 等级备援电源提供高能源效率
规格参数
| 处理器 / 系统总线 |
2 x Socket SP3 (LGA 4094) AMD EPYC™ 7003 Series AMD EPYC™ 7002 Series Max TDP : 280W 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology |
|---|---|
| 代 | E11 |
| 内存 |
Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU) per Node Capacity :Maximum up to 4096GB per socket Memory Type :Dual Channel DDR4 3200/2933 RDIMM Dual Channel 3200/2933 LRDIMM Dual Channel 3200/2933 LR-DIMM 3DS non ECC Memory Size :64GB, 32GB, 16GB RDIMM 128GB, 64GB LRDIMM 128GB, 64GB LRDIMM |
| 扩展槽 |

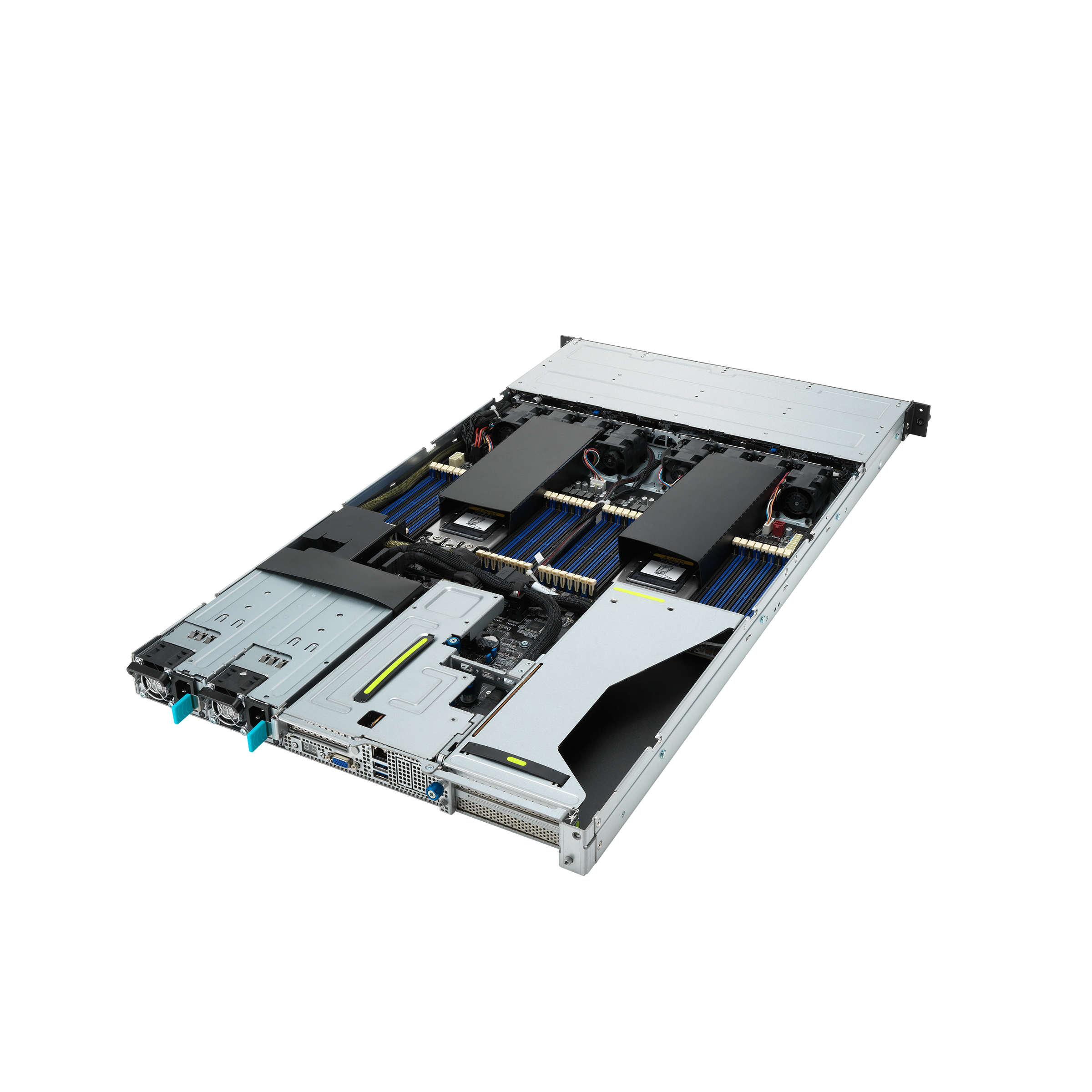

Up to 3 x Expansion slots + 1 x Internal PIKE slot 1 x PCIe Gen4 x16, FHFL (CPU1) 1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2) 1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2) *Installing GPU cards will occupied expansion slots. |
| 存储功能（视出货而定） |
Storage Controller :
4 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link) 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode SAS Controller :ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Broadcom MegaRAID 9560-16i (Optional) |
| 硬盘位 |

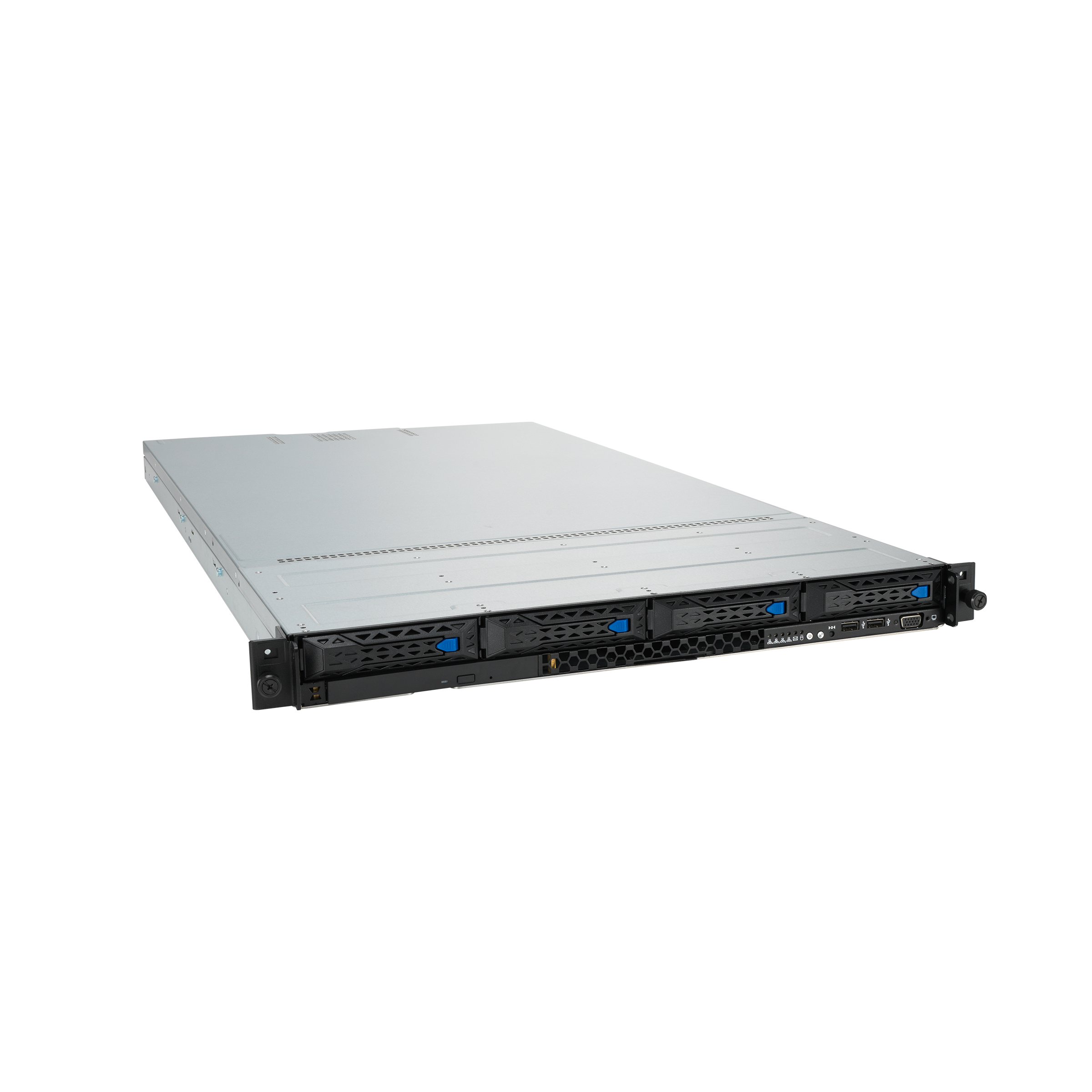

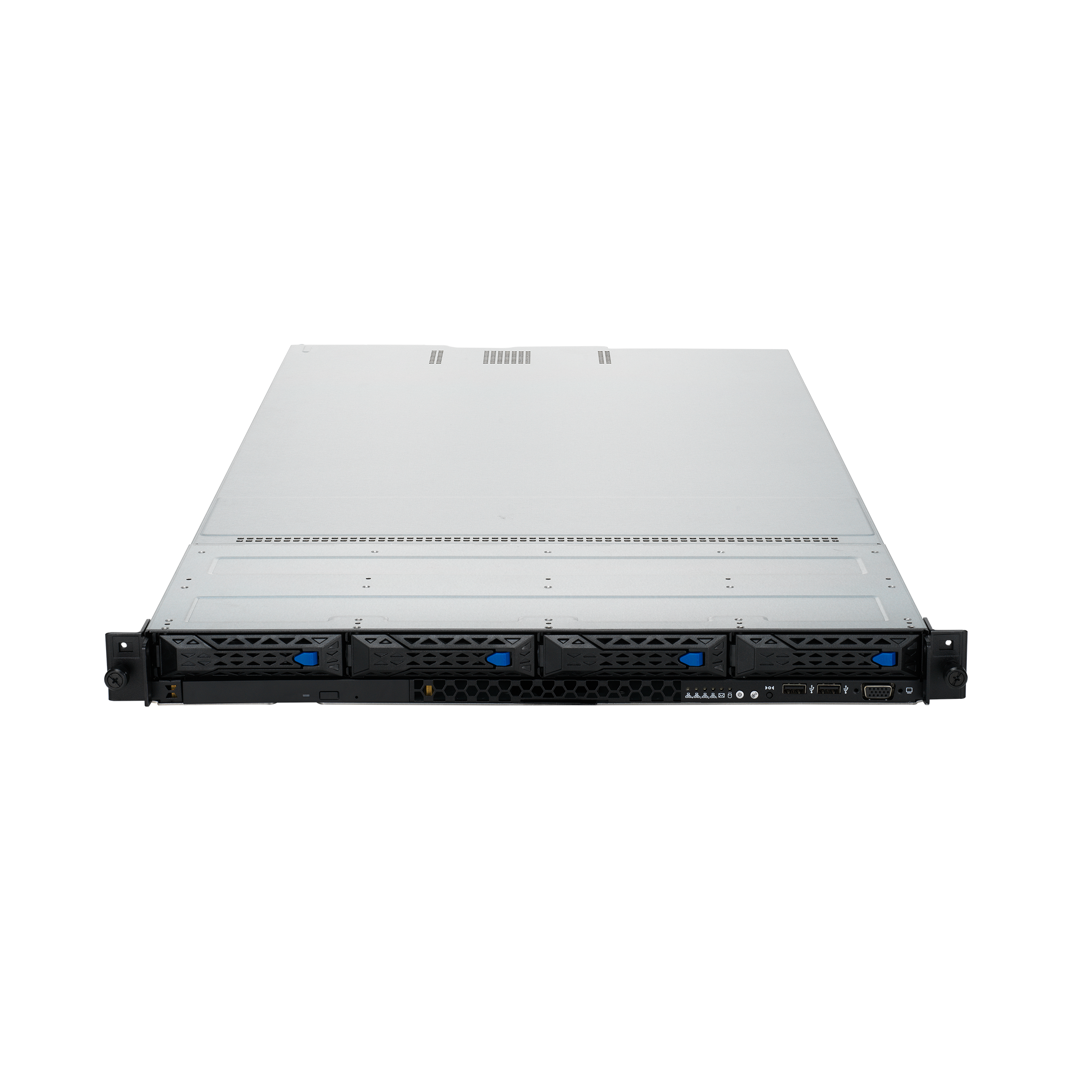

4 x 3.5" hot-swap drive bays (4 x NVMe/SATA/SAS*) 2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2) *must with PIKE/RAID card |
| 系统风扇 |
8 |
| 网络(视出货而定) |
1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN or Option 2 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN or None x + 1 x Mgmt LAN |
| 显示功能 |
Aspeed AST2600 with 64MB VRAM |
| 支持多显卡 |
NVIDIA A10 24GB * 2 |

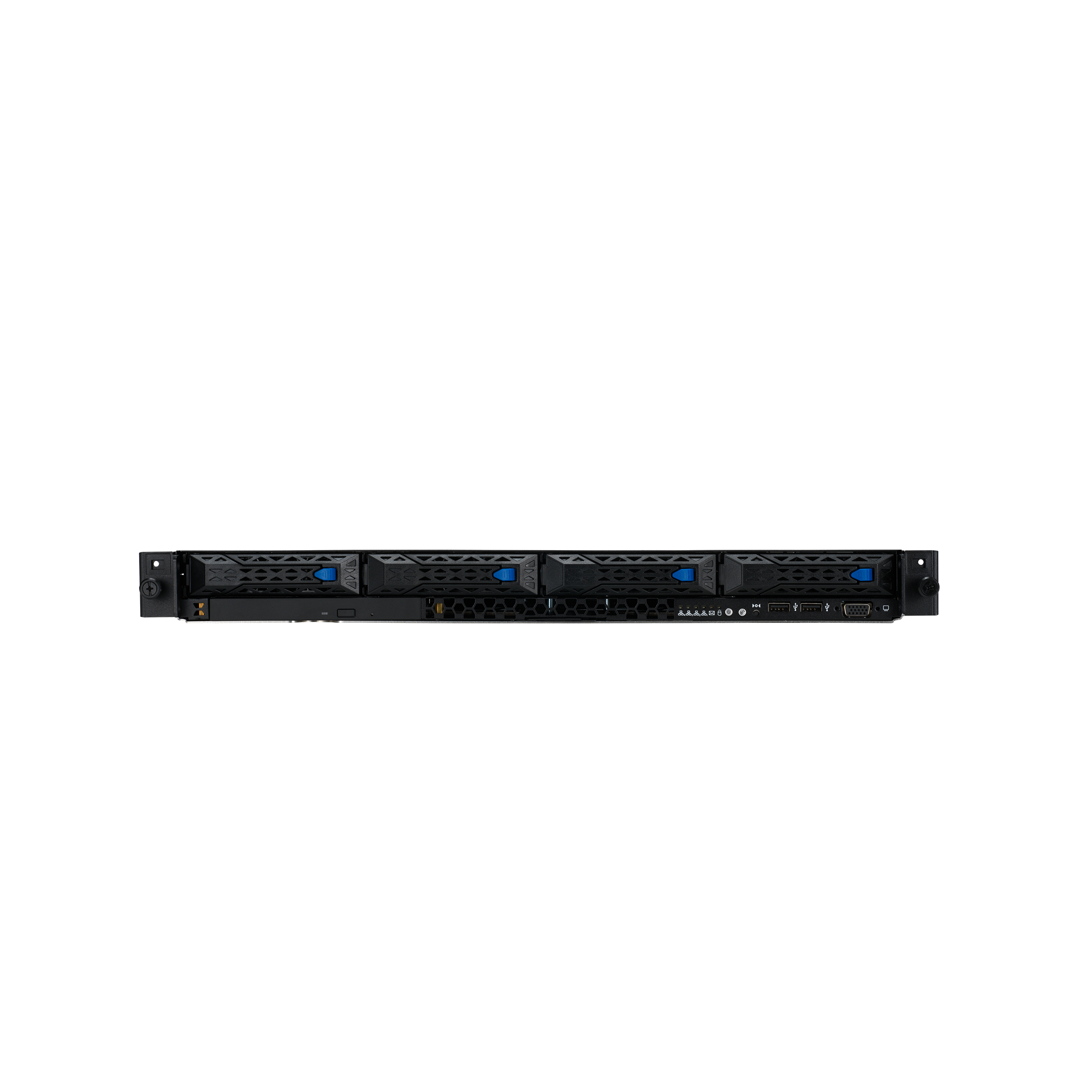

| 前置 I/O 接口 |
2 x USB 3.2 Gen1 ports 1 x VGA port |

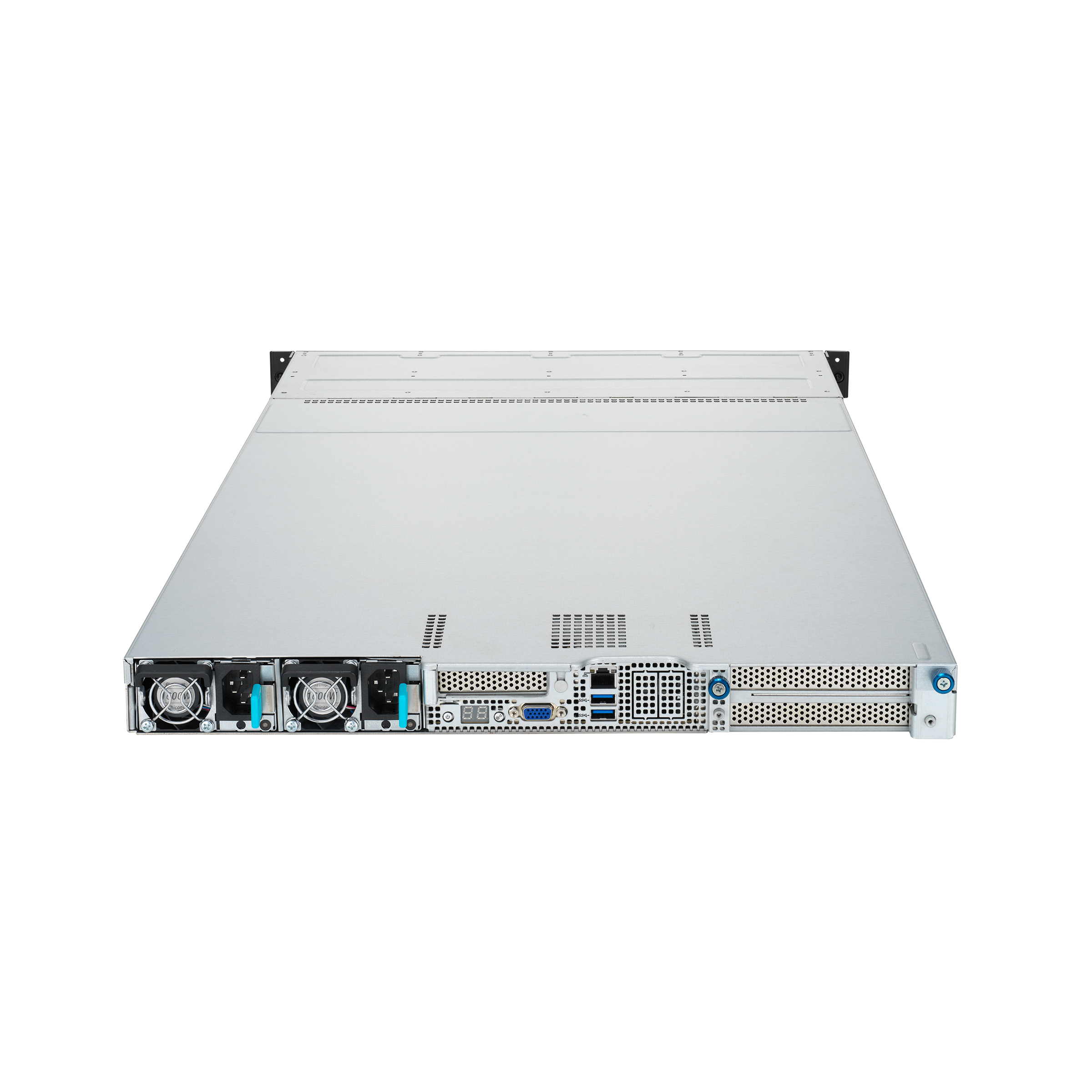

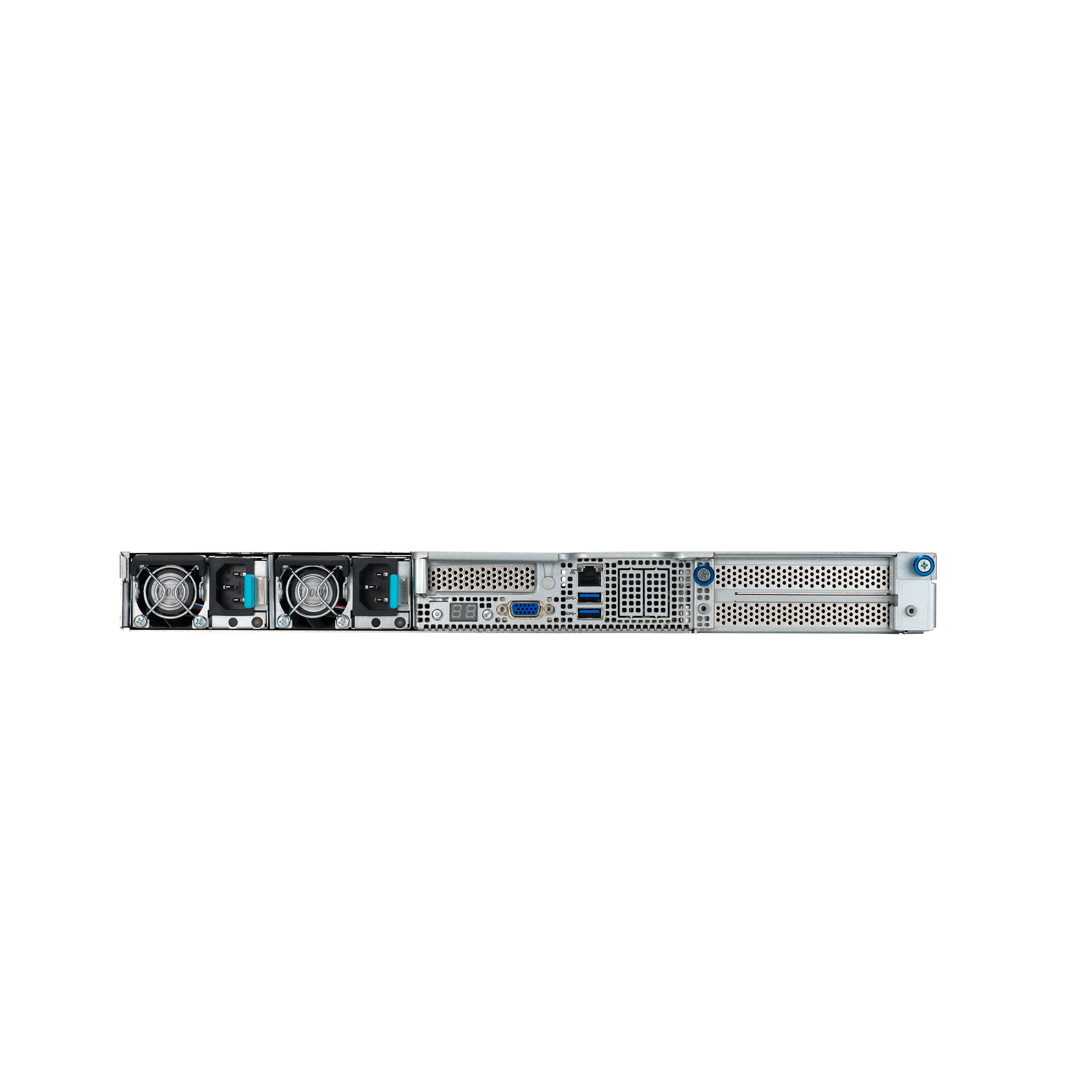

| 背部 I/O 接口 |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 1 x OCP3.0 port (Please remember to insert OCP3.0 Board) |
| Switch/LED |
Front Switch/LED:
1 x Power switch (w/LED) 1 x Reset Switch 1 x Location Switch (w/LED) 1 x HDD Access LED 1 x Message LED LAN 1-4 LED (on NIC Module) Rear Switch/LED:1 x Power switch w/LED 1 x Port 80 LED(Q-Code) 1 x Location Switch w/LED 1 x Message LED |
| OS 支持 |
RHEL 7.9 RHEL 8.2 RHEL 8.3 SLES 12 SLES 15 Ubuntu 18.04 Ubuntu 20.04 Windows Server 2016 Windows Server 2019 |
| 管理功能 |
On-Board ASMB10-iKVM for KVM-over-IP ASUS Control Center Enterprise (Optional) |
| 合规性认证 |
BSMI, CE, FCC(Class A) |
| 外形尺寸 |
842.5mm x 449mm x 43.85mm 33.17" x 17.68" x 1.73" 1U |
| 重量 |
Net Weight: 18.85 Kg Gross Weight: 23.89 Kg |
| 电源 |
1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China) *1600W RPSU is required while choosing GPU SKU |
| 环境 |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 60°C Non operating humidity: 20% ~ 90% ( Non condensing) |
| 可选配件 |
Standard Cooling Solution or Water Cooling Solution |
| 备注 |
If only 1 CPU is installed, some functions might be not available. *SAS support only from SAS HBA/RAID Card |
