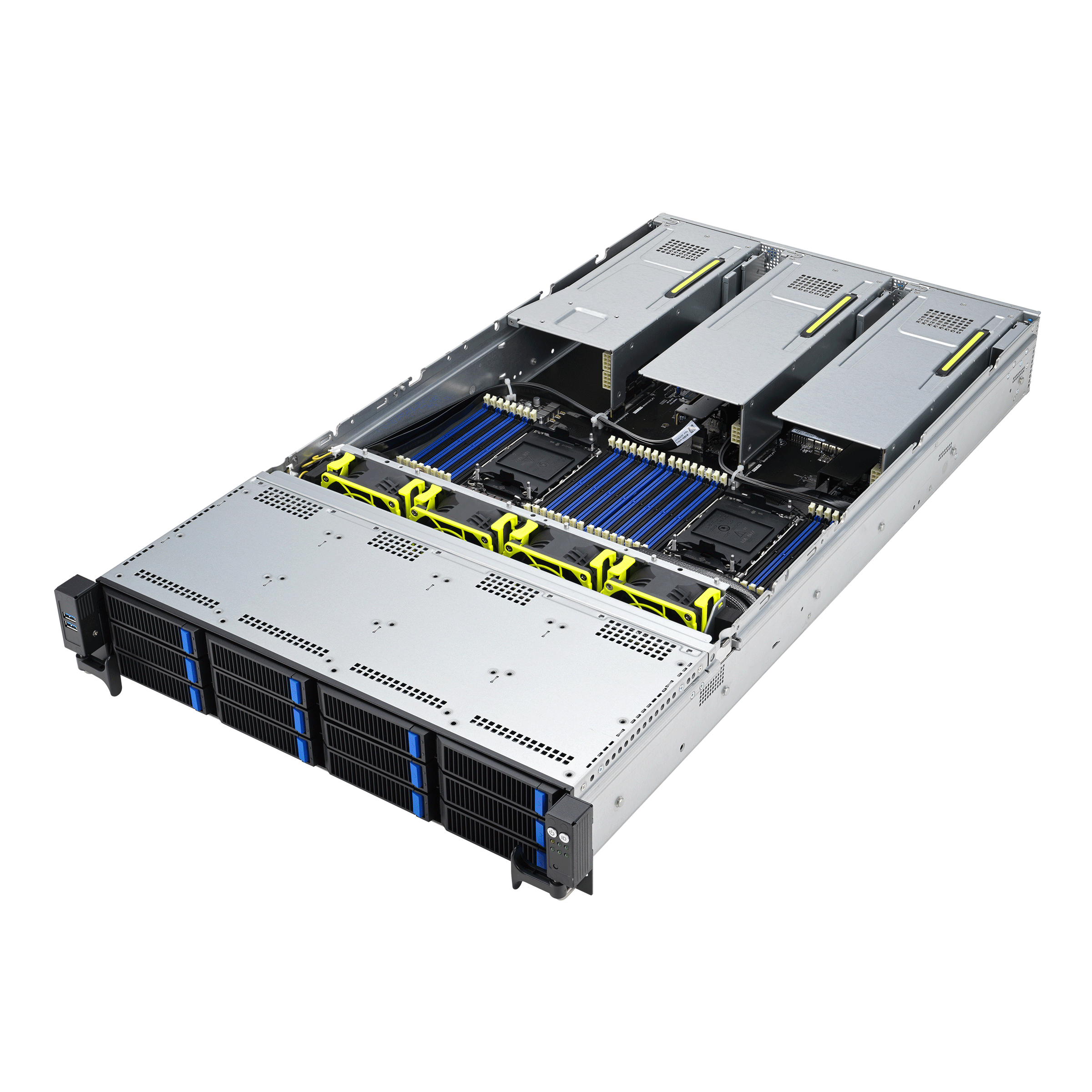

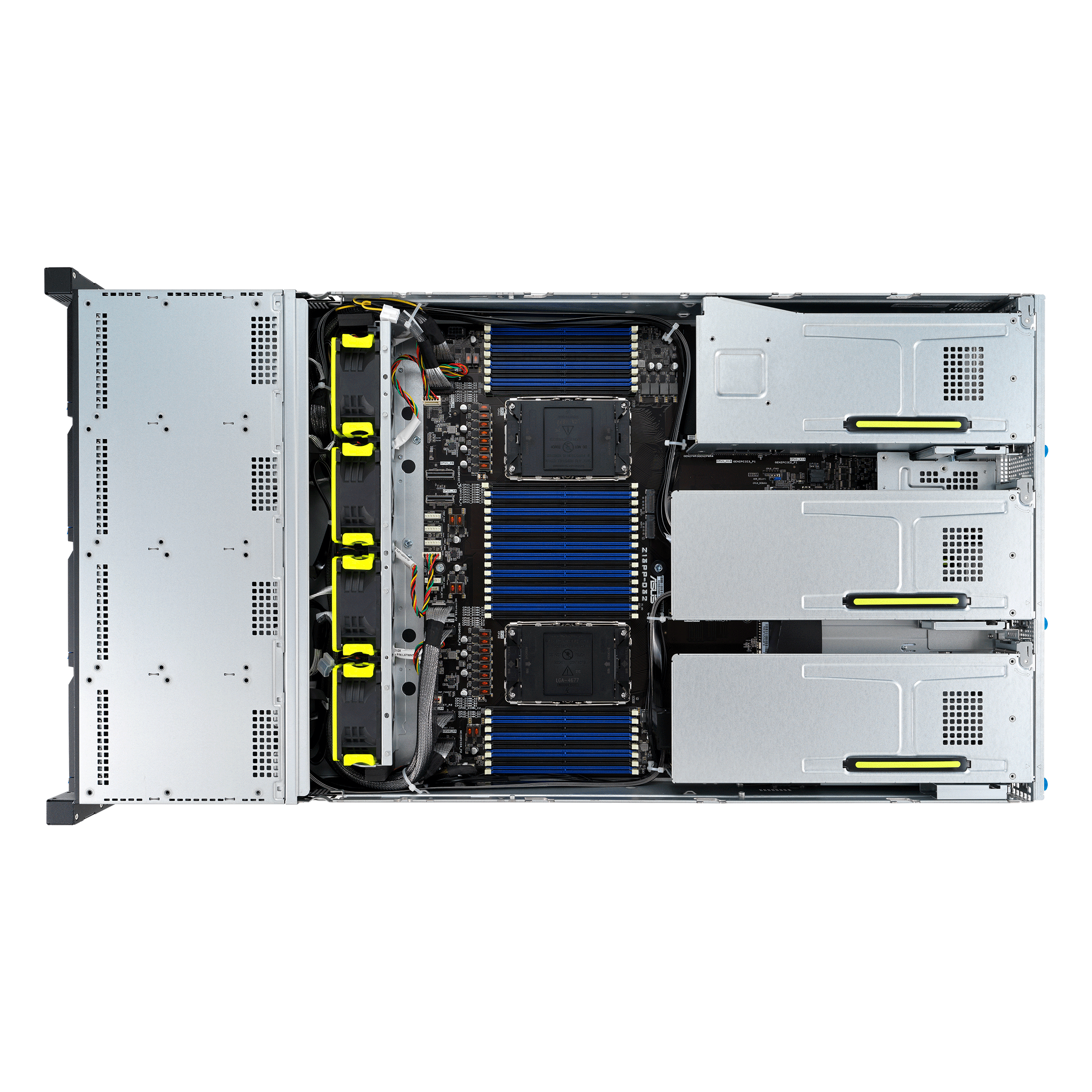

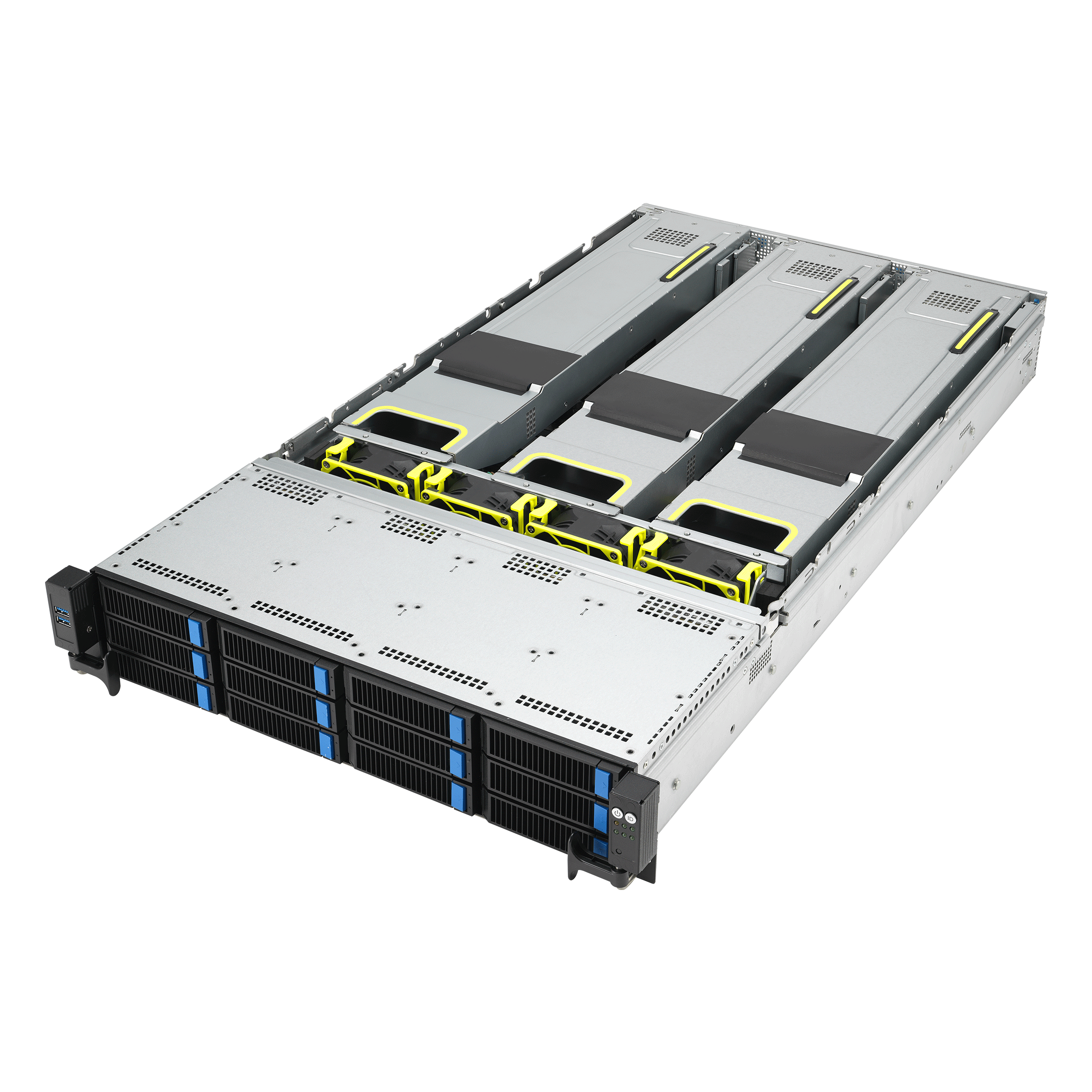

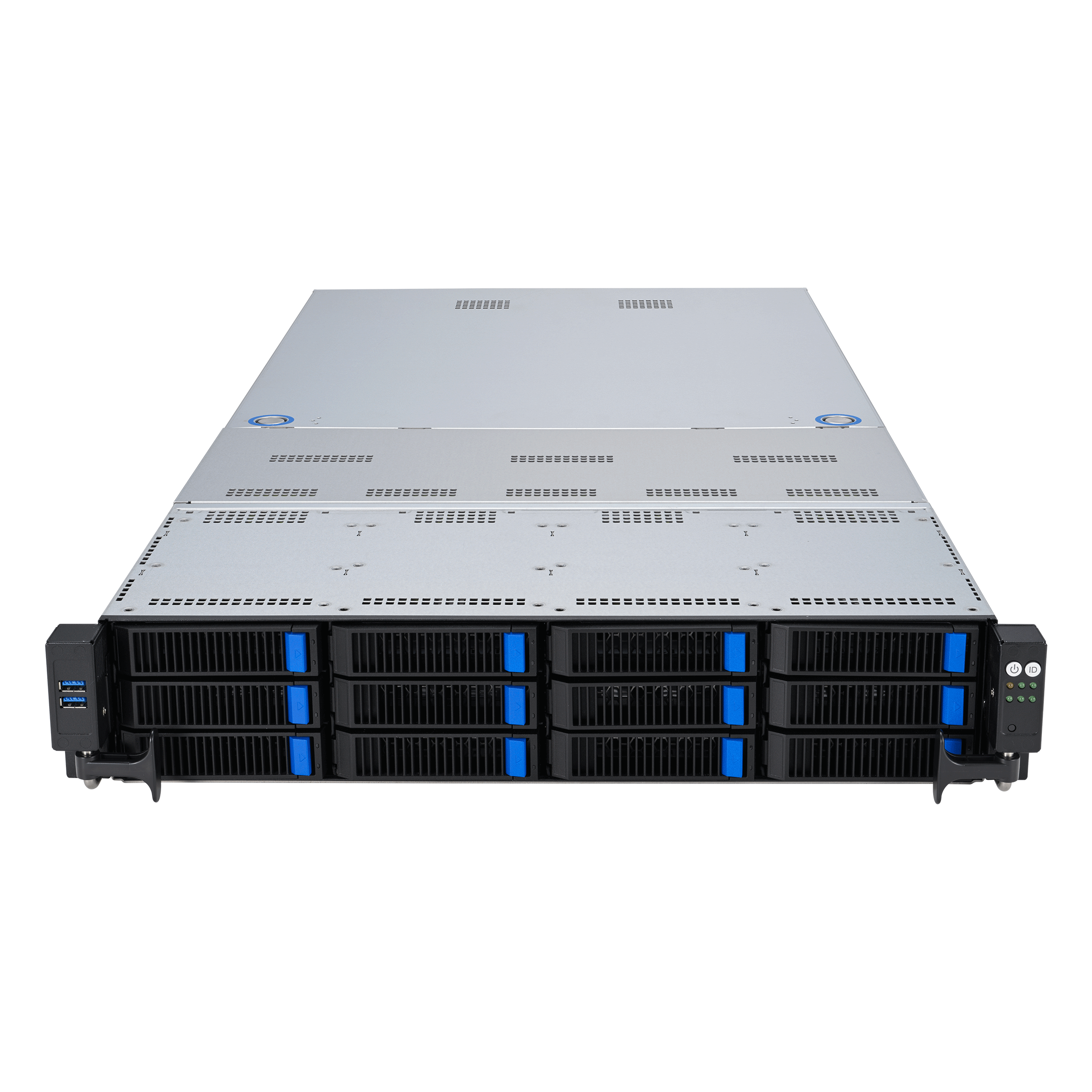

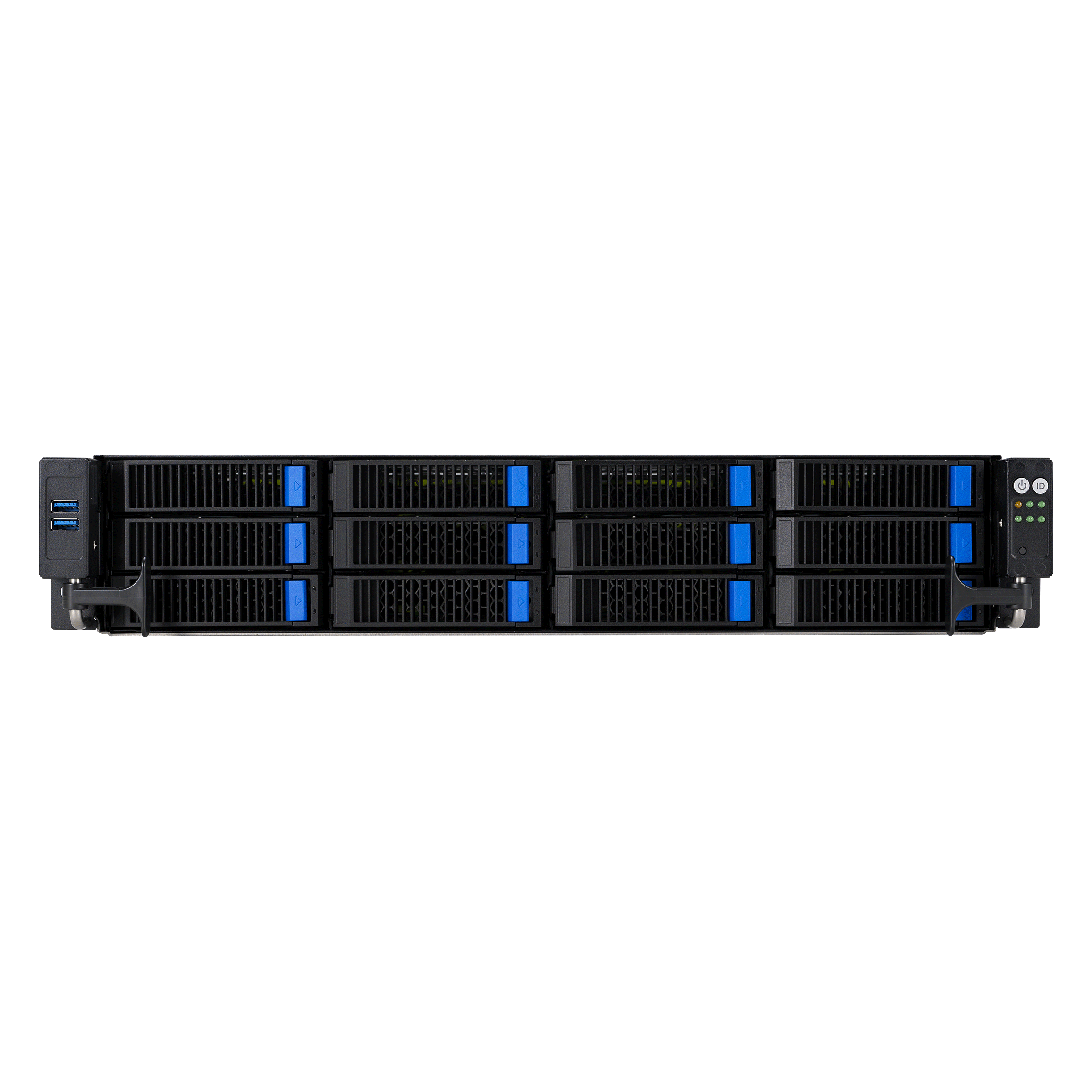

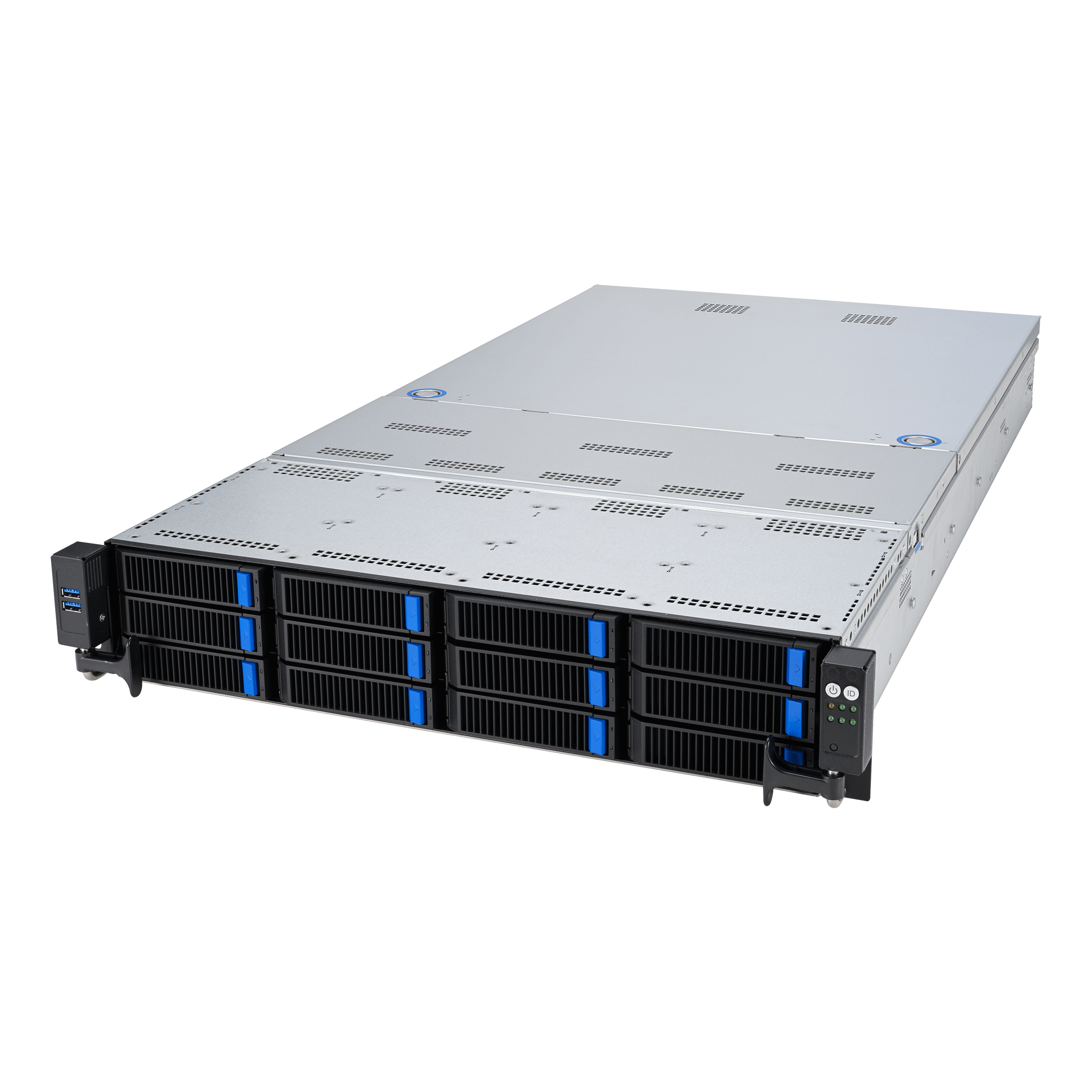

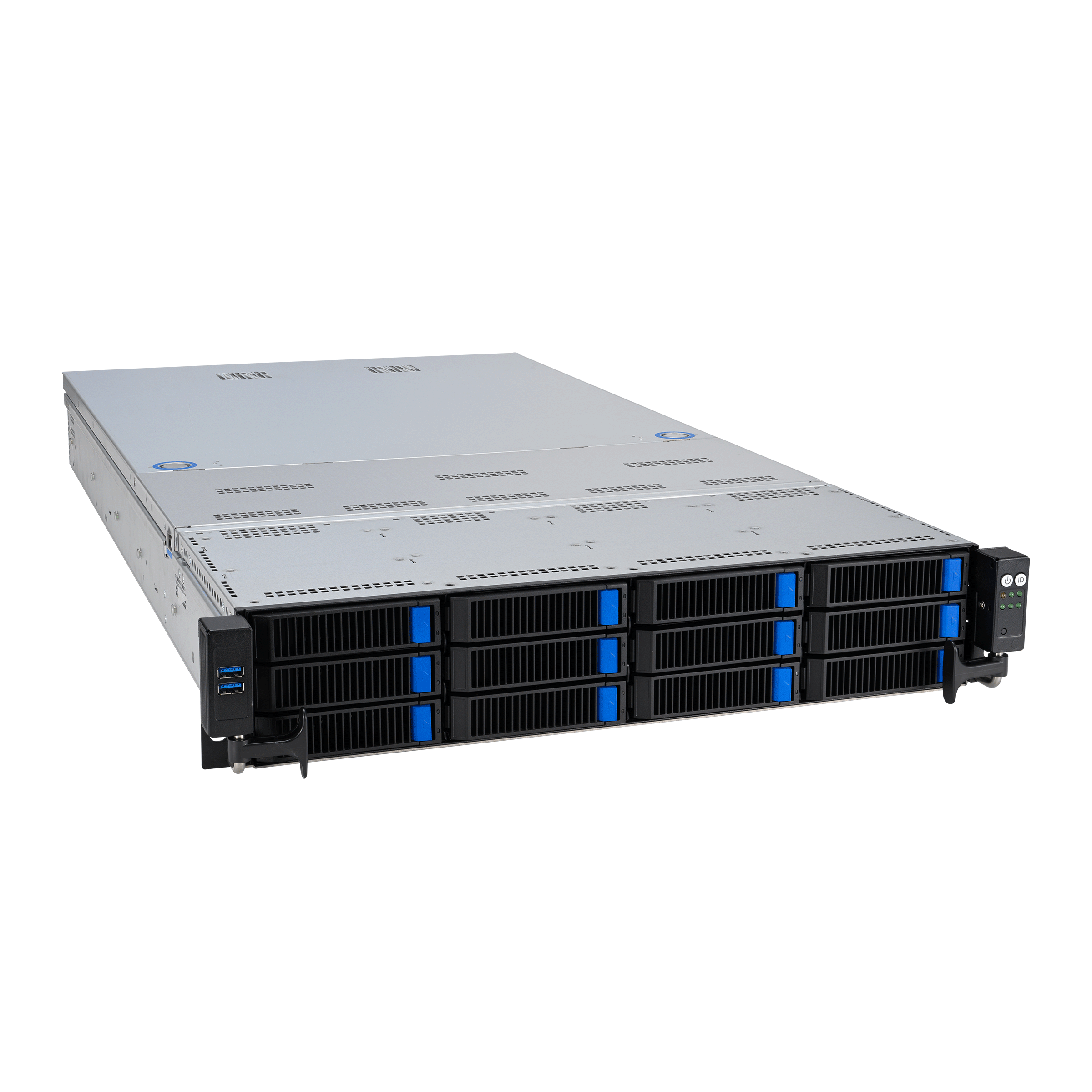

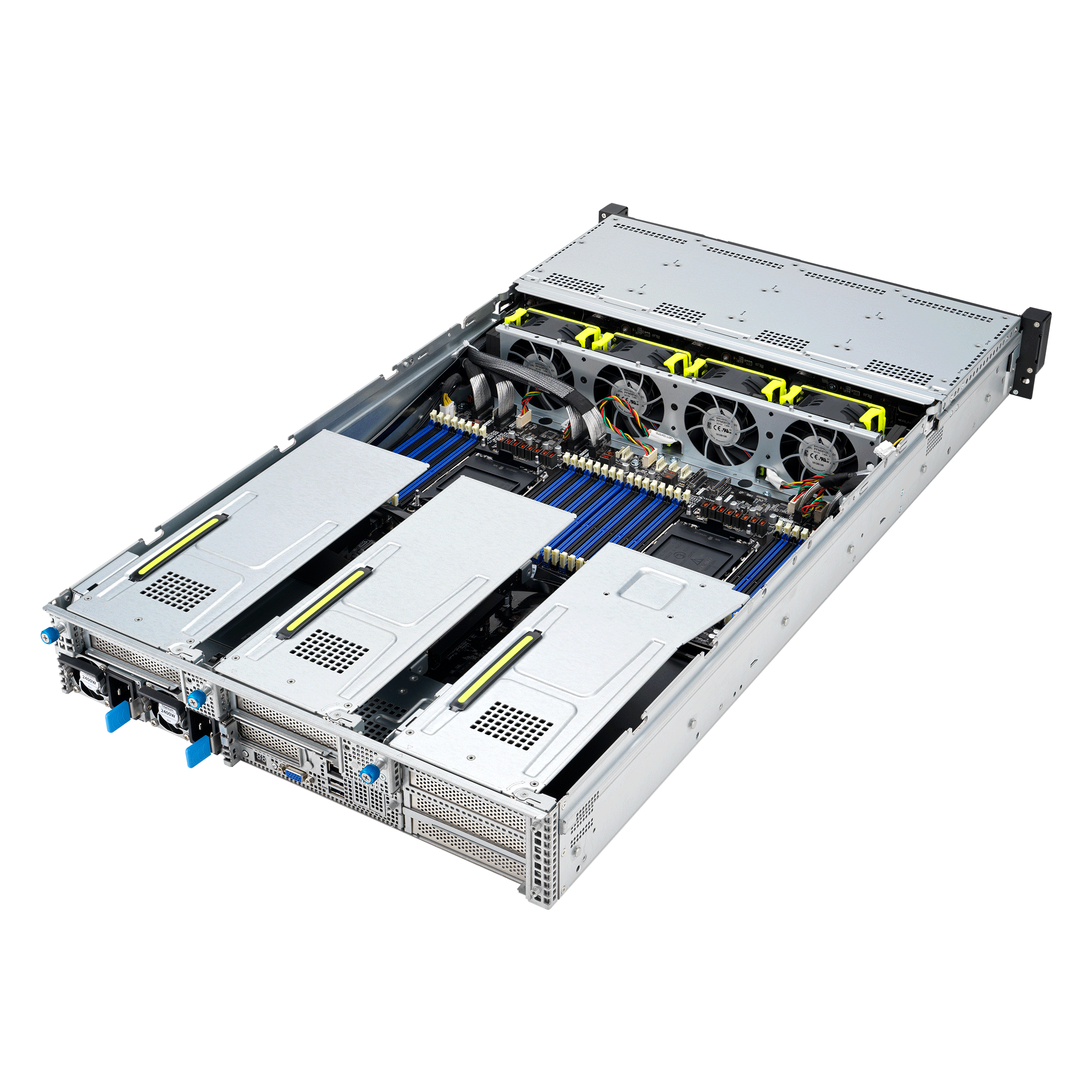

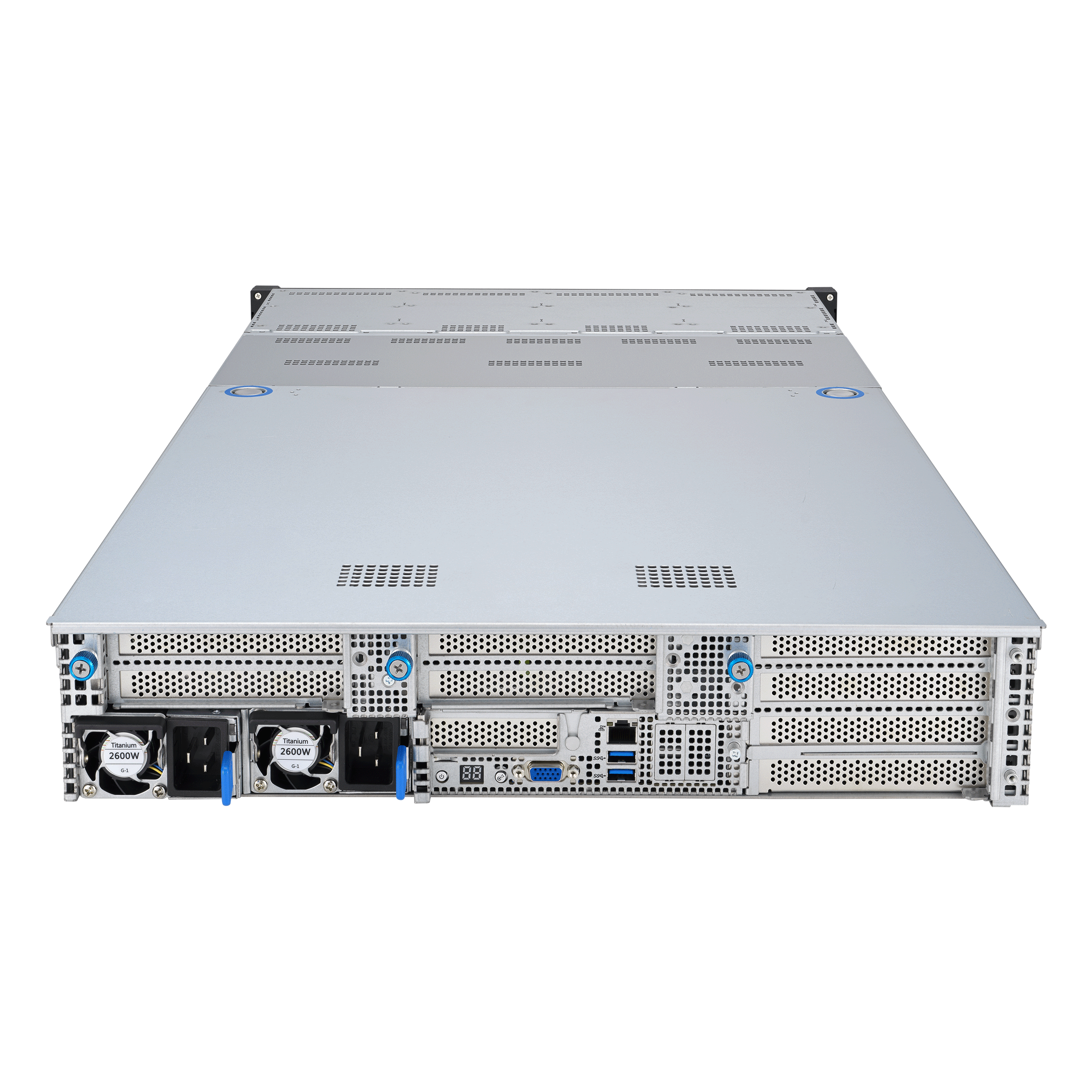

2U 双插槽服务器采用第4代英特尔至强可扩展处理器支持 32个 DIMM, 9个 PCIe 5.0 插槽, 14个 NVMe, OCP 3.0, ASUS ASMB11-iKVM, 以及高达 4个 双插槽 GPU
- 强大的性能: 采用第4代英特尔至强可扩展处理器专为强大的数据基础设施而设计，从云端到网络，再到智能边缘
- 出色的存储和扩展设计: 前面板最高支持 12 个全闪 NVMe 硬盘, 后侧面板(选配)支持2个 NVMe, 以及 9个 PCIe 5.0 插槽以提供更高的带宽和系统升级
- 灵活的网络模块设计: 选配2个 10 Gbps 或4个 1 Gbps 板载 LAN 模块, 以及 OCP 3.0 模块及后侧 PCIe 5.0 插槽，实现更快的连接性能
- 先进的风冷散热解决方案: 采用增强型卷风冷却(EVAC) 散热器支持更高的 TDP
- 增强的 IT 基础设施管理: ASUS ASMB11-iKVM 远程控制可搭配 ASPEED AST2600, ASUS Control Center IT 管理软件和硬件级信任根解決方案

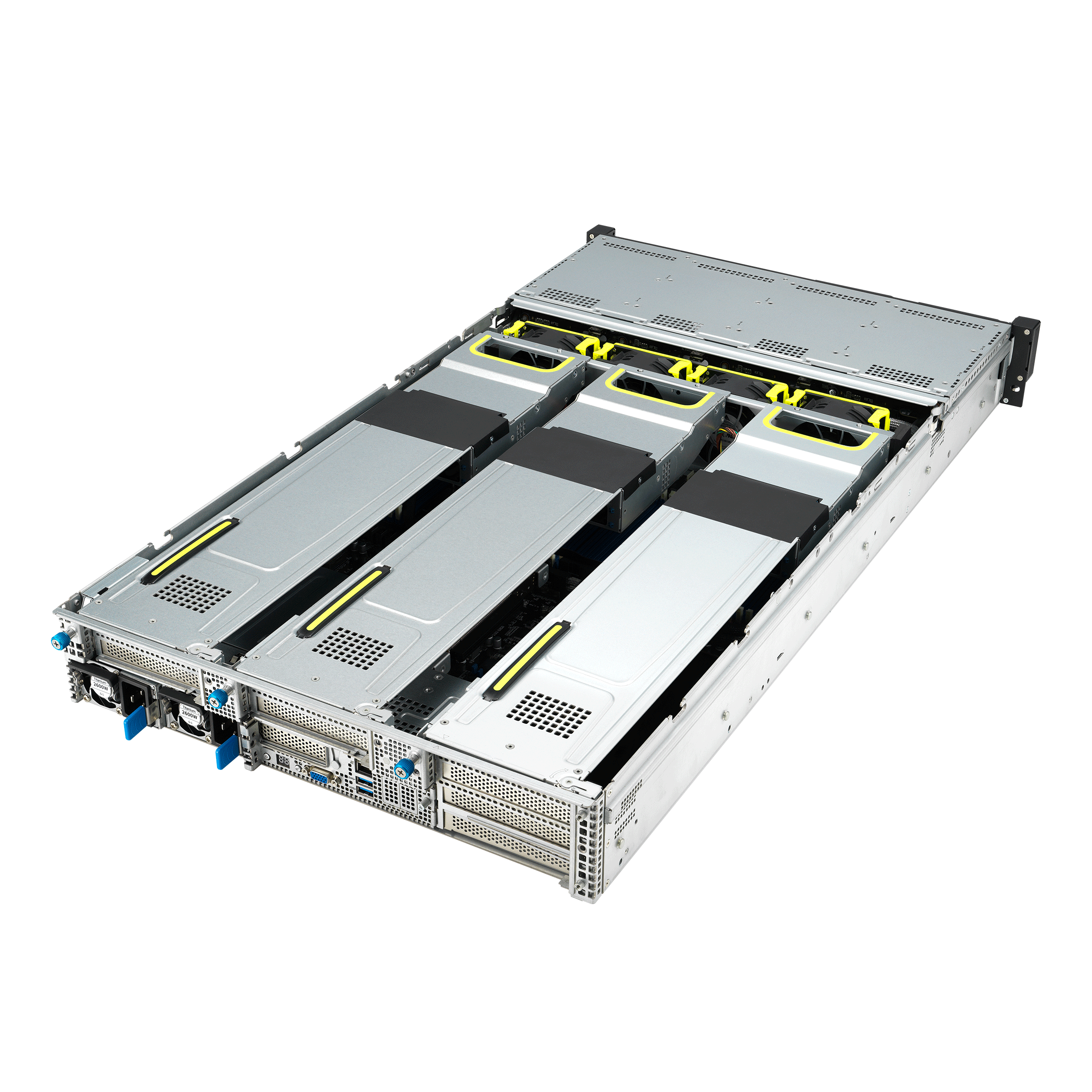

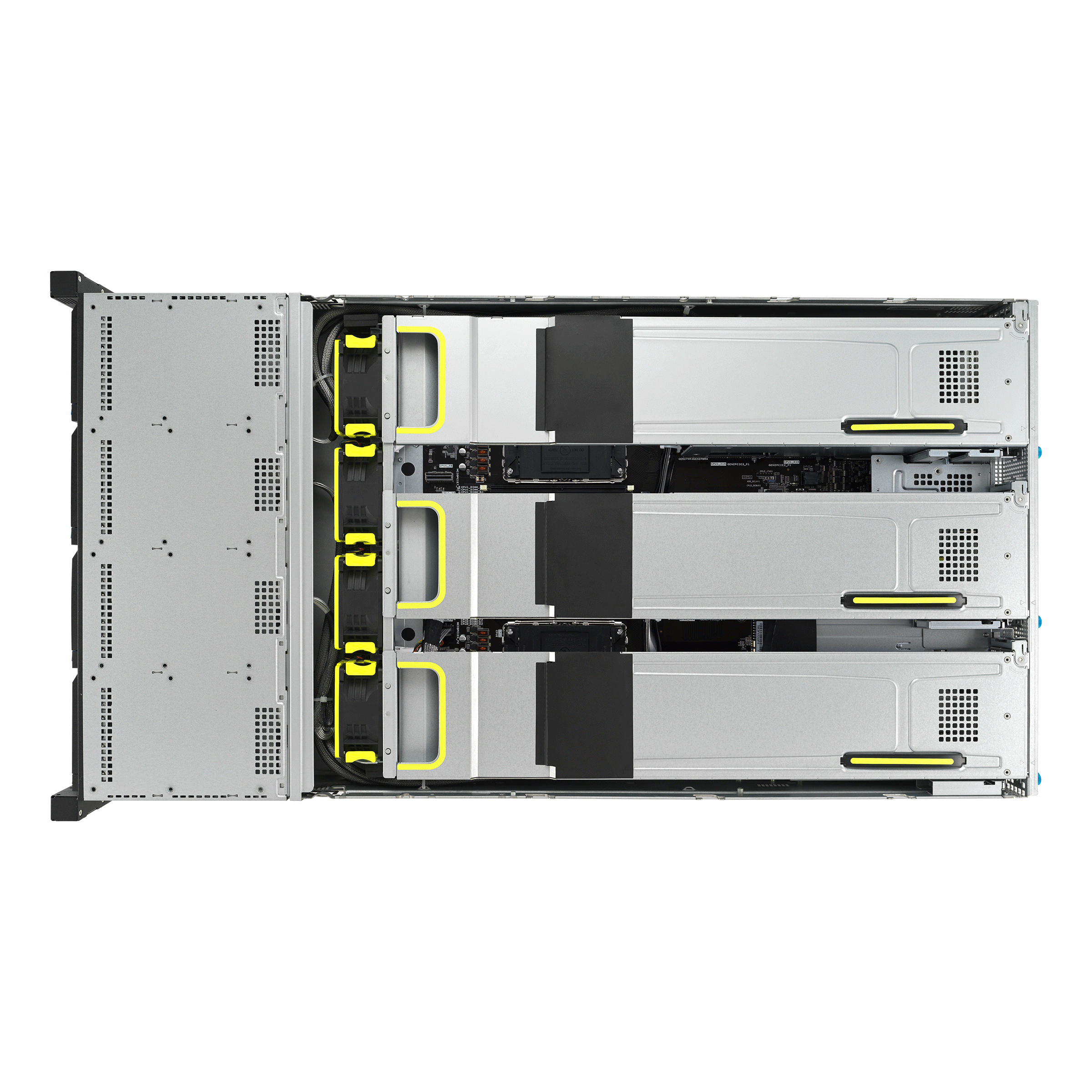

- 助力加速 AI 和 HPC 工作负载: GPU SKU 支持高达4个双插槽 GPU, 包括英特尔数据中心 GPU Flex 系列和 NVIDIA A100
规格参数
| 处理器 / 系统总线 |
Intel®Xeon® Processor Scalable Family |
|---|---|
| CPU代数 |
4th |
| 核心逻辑 |
Intel® C741 Chipset |
| 内存 |
32 x DDR5 4800(1DPC)/4400(2DPC) |
| 扩展槽 |
Up to 9+1 slots 8 x PCIe G5 x8 link or 6 x PCIe G5 x16 link (FHFL or FHHL) 1 x PCIe G5 x8 link, internal slot 1 x PCIe G5 x16 link, LP |
| 存储功能（视出货而定） |
12 x 3.5”/2.5" hot-swap bay 8 x NVMe/SAS*/SATA + 4 NVMe/SATA Optional 2 x 2.5" Rear Hot-swap Storage Bays (Up to 2x NVMe/SATA) (*HBA/RAID card is required to support SAS hard drives) |
| 硬盘位 |
12 x 3.5”/2.5" hot-swap bay 2 x M.2 slot |
| 系统风扇 |
4 |
| 网络(视出货而定) |
4 x1Gbe(Intel I350-AM4) RJ45 port or 2 x 10Gbe(Intel X710-AT2) RJ45 port |
| 显示功能 |
Aspeed AST2600 64MB |
| 前置 I/O 接口 |
2 x USB 3.2 Gen1 ports |

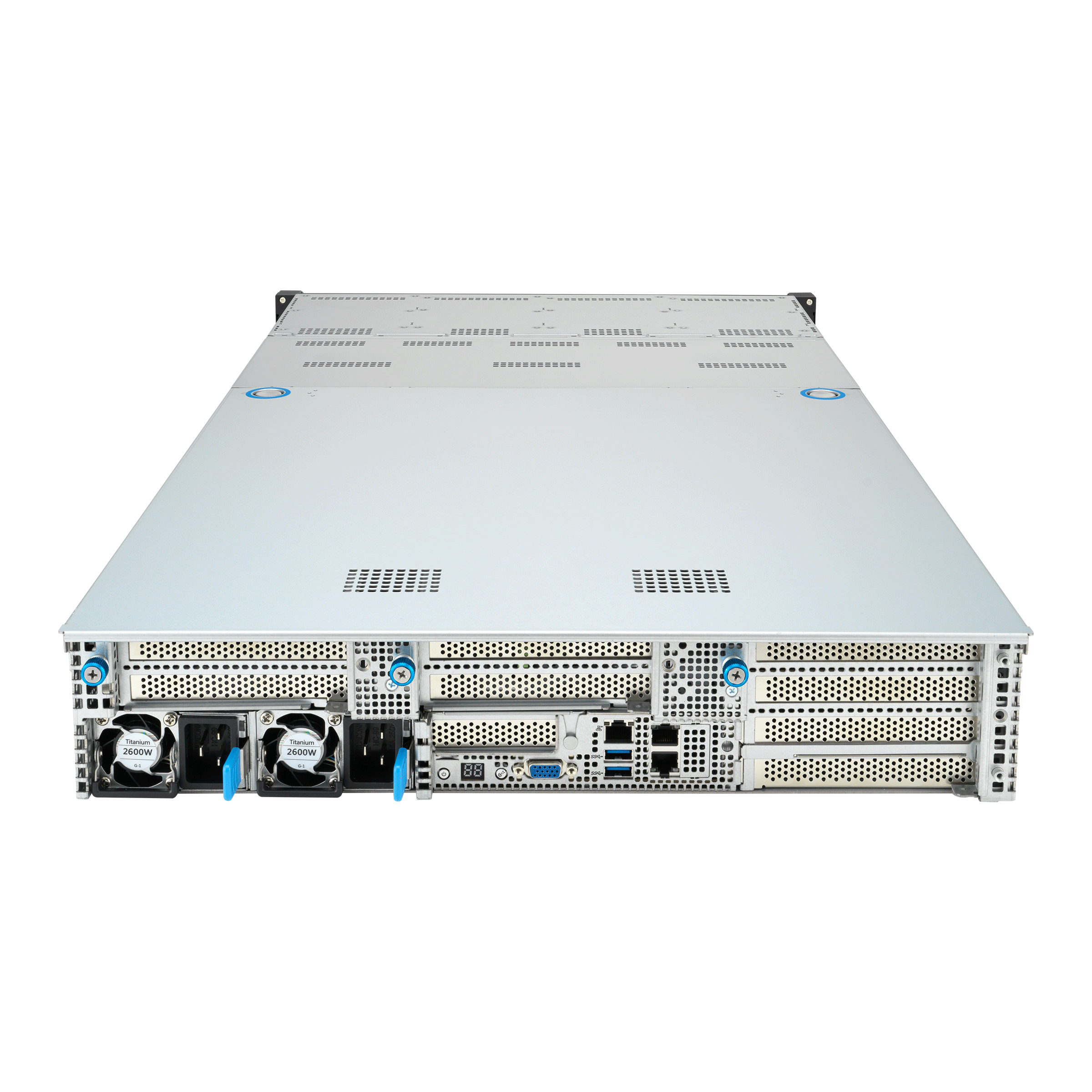

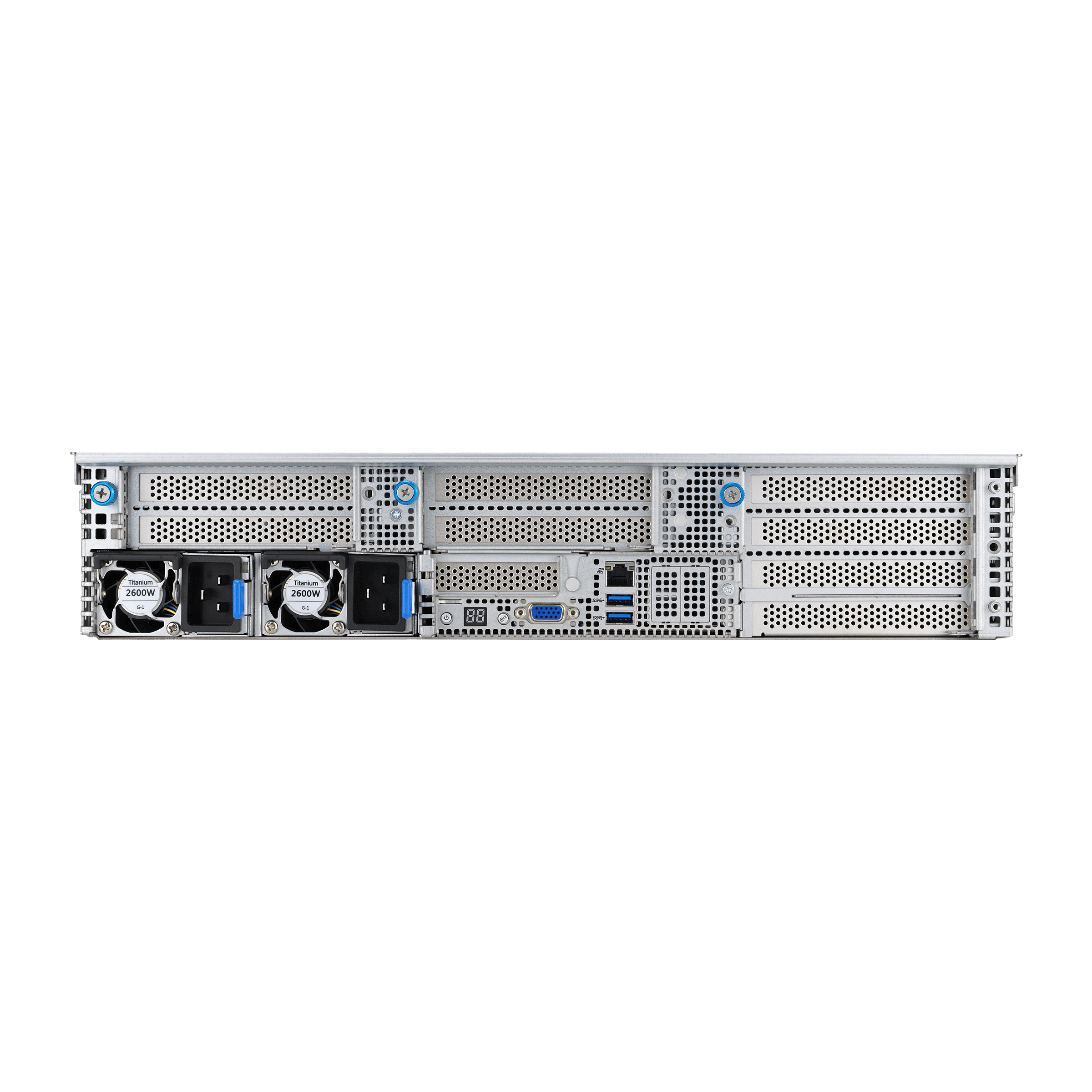

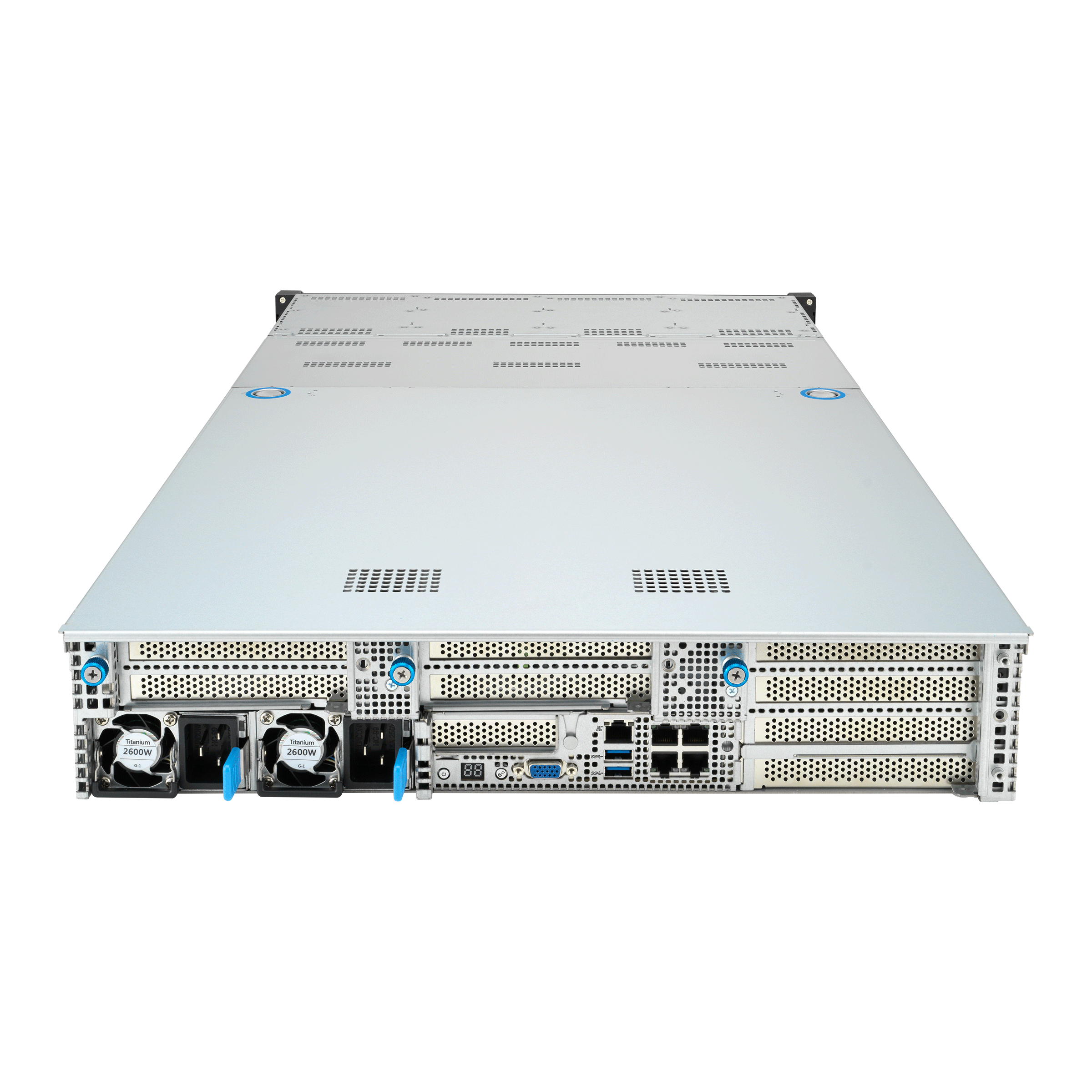

| 背部 I/O 接口 |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional) |
| Switch/LED |
Front Switch/LED:
1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED) |
| 外形尺寸 |
840mm x 447mm x 88mm 2U |
| 重量 |
26.855kg |
| 电源 |
1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply |
| CPU 散热器/ 冷却器 |
Standard/ EVAC Heatsink |

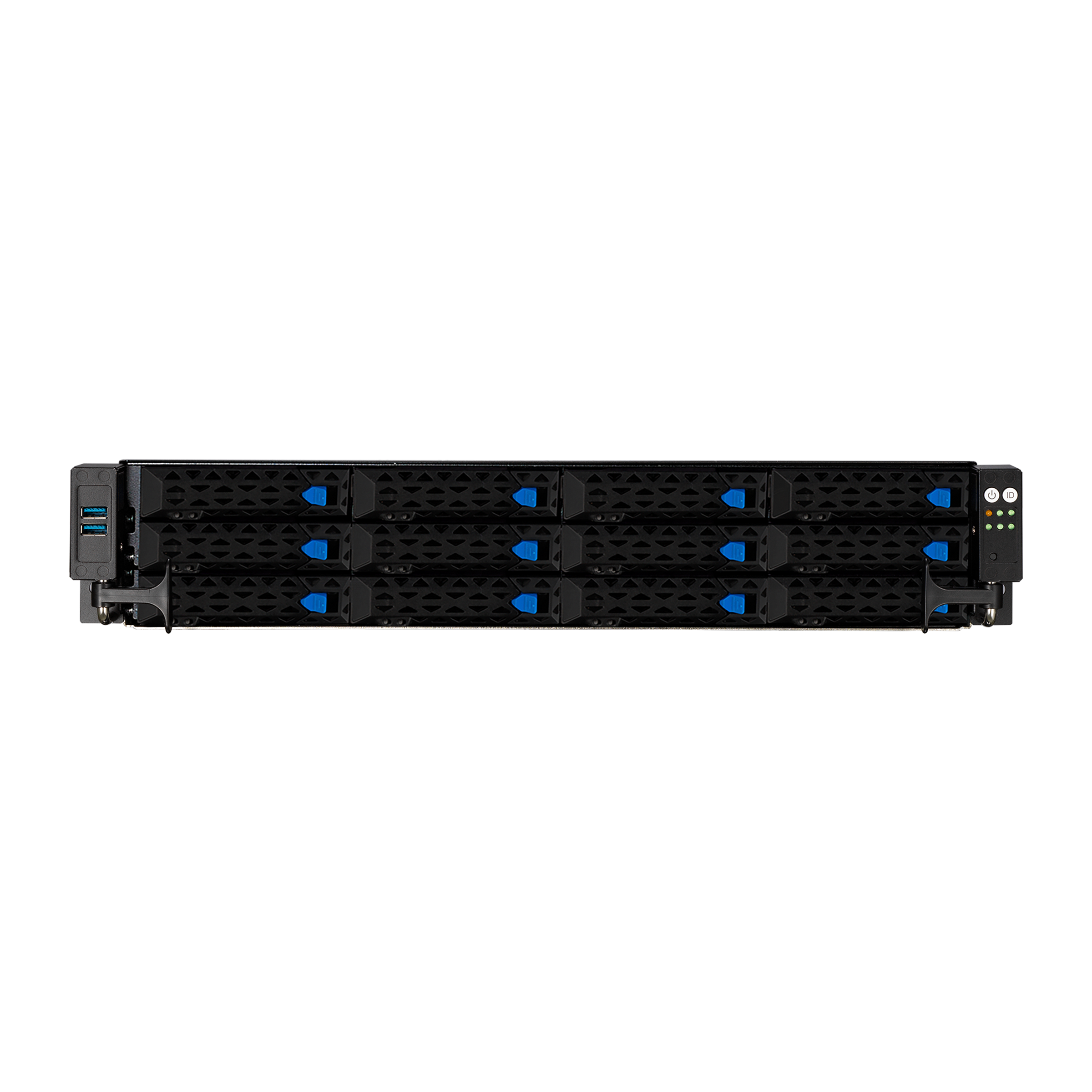

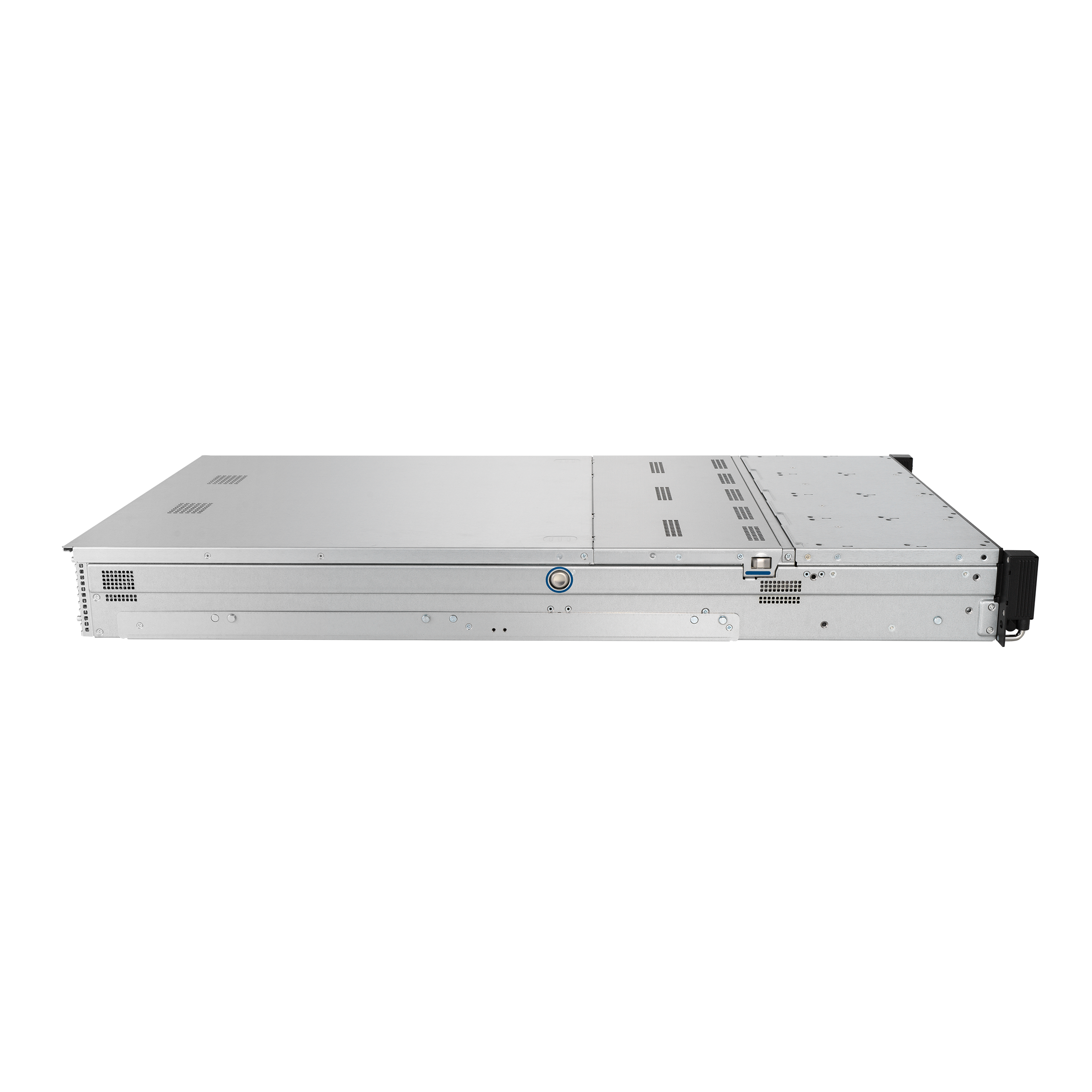

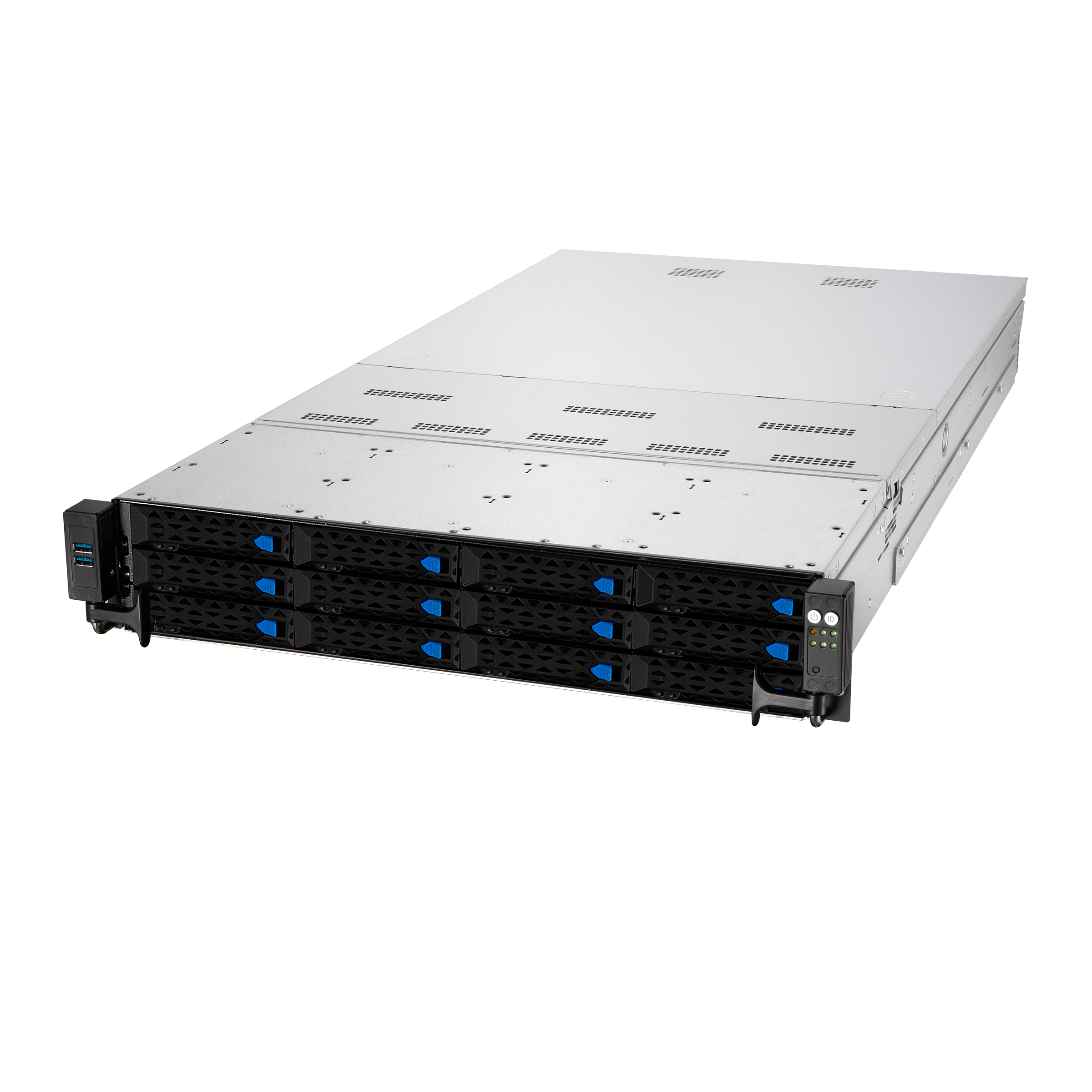

2U 双插槽服务器支持第三代英特尔Xeon可扩展处理器，支持 32 个 DIMM、四个双插槽 GPU、8 个 NVMe、9 个 PCIe 4.0 插槽、OCP 3.0、双 M.2 及 ASUS ASMB10-iKVM
- 支持双插槽第三代英特尔可扩展处理器含 32 DIMM，每插槽支持高达 270 瓦 TDP
- GPU 优化设计可搭载四个双插槽 GPU，以处理 AI 工作负载
- 前面板支持 4 个全闪存 NVMe 硬盘，4个 NVMe/SATA/SAS 及4个前面板 SATA/SAS 设备, 加之 2 个后方面板选配的 NVMe以提供大量存储设备及高传输性能
- 搭载高达 9 个 PCIe® 4.0 插槽，以提供更高的带宽及更快的数据传输速率
- 弹性的内建 LAN 模块设计可提供四个 1 Gb LAN 或两个 10 Gb LAN 选项
- 弹性的风冷与水冷解决方案可协助数据中心达到更低的电力使用效率 (PUE) 及上佳的 TCO
- 内建 ASUS ASMB10-iKVM 可搭配 ASPEED AST2600 控制器进行频外管理
- 整合的 PFR FPGA 可做为平台信任根解决方案，以提供固件弹性
- 以 2400W/1600W 80 Plus® Platinum 电源提供高能源效率
规格参数
| 处理器 / 系统总线 |
2 x Socket P+ (LGA 4189) Option 1 3rd Gen Intel® Xeon® Scalable Processors Family(270w) UPI (11.2 GT/s) |
|---|---|
| 代 | E10 |
| 核心逻辑 | Intel® C621A Chipset |
| 内存 |
Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU) Capacity :Maximum up to 6TB per socket Memory Type :DDR4 3200/2933 RDIMM DDR4 3200/2933 LRDIMM DDR4 3200/2933 LR-DIMM 3DS DDR4 3200/2933 RDIMM 3DS Memory Size :64GB, 32GB, 16GB, 8GB RDIMM 256GB, 128GB, 64GB RDIMM 3DS 128GB RDIMM 3DS/LR-DIMM 3DS 512GB, 256GB, 128GBIntel® Optane™ DC persistent memory 200 Series (DCPMM) * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| 扩展槽 |
Up to 9 x Expansion slots 2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1) 1 x PCIe Gen4 x8, FHFL (CPU1 x1) 1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1) 4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2) 1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1) *Installing GPU cards will occupied expansion slots. |
| 存储功能（视出货而定） |
Storage Controller :
Intel C621A Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) SAS Controller :Intel C621A ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Broadcom MegaRAID 9560-16i (Optional) |
| 硬盘位 |
[OPTION1] Front bays: 12 x 3.5 or 2.5" hot-swap bays (8x NVMe/SATA/SAS*+ 4x SATA/SAS*) [OPTION2] Front bays: 12 x 3.5 or 2.5" hot-swap bays (8x NVMe/SATA/SAS*+ 4x SATA*/SAS*) Rear bays 2 x 2.5" hot-sway drive bays (2x SATA/NVMe) 2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link) (CPU2) *SAS/SATA support from SAS HBA/RAID card **Support tri-mode card |
| 系统风扇 |
4(if support GPU SKU, it will have external fan) |
| 网络(视出货而定) |
Option 1 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN or Option 2 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN or None x + 1 x Mgmt LAN |
| 显示功能 |
Aspeed AST2600 with 64MB VRAM |
| 支持多显卡 |
NVIDIA A10 24GB * 3 NVIDIA TESLA T4 * 4 NVIDIA A100 80GB * 4 NVIDIA A30 24GB * 4 NVIDIA A40 48GB * 4 NVIDIA A2 24GB * 8 NVIDIA RTX A6000 * 4 |
| 前置 I/O 接口 |
2 x USB 3.2 Gen 1 ports |

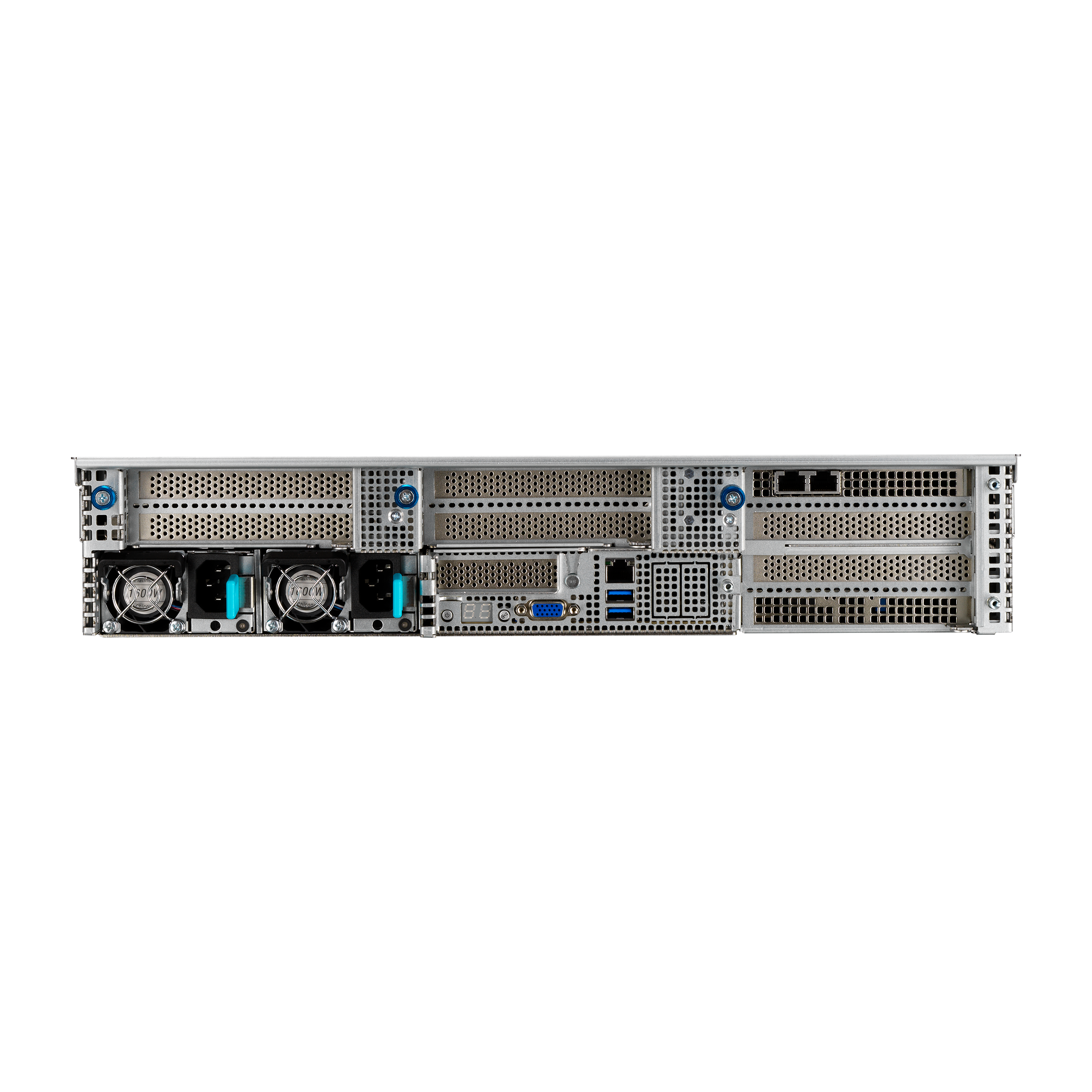

| 背部 I/O 接口 |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 4/2 x NIC ports* * The number of NIC ports available depends on the LAN Controller card installed. |
| 开关/LED |
Front Switch/LED:
1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use Rear Switch/LED:1 x Power switch 1 x Q-Code/Port 80 LED 1x Location LED |
| OS 支持 | |
| 管理功能 |
ASUS Control Center(Classic) On-Board ASMB10-iKVM for KVM-over-IP |
| 合规性认证 |
BSMI, CE, FCC(Class A) |
| 外形尺寸 |
840mm x 449mm x 88mm 33.07" x 17.68" x 3.46" 2U |
| 重量 |
Net Weight :18.195KG |
| 电源 |
1+1 Redundant 2400W 80 PLUS Titanium Power Supply Rating: 100-127Vac/ 200-240Vac, 13.8A/15A (for each inlet), 50/60Hz, Class I 1+1 Redundant 1600W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet), 50-60Hz, Class I |
| 环境 |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| 备注 |
*If only 1 CPU is installed, some functions might be not available. *SAS support only from SAS HBA/RAID Card *If PCIe expansion slot 3 choosing OCP3.0 option, slot 4 will be limited to support PIKE card only. |
| CPU 散热器/ 冷却器 |
2 |
| 风扇 |
1 (For supporting GPU SKU, it will have external fan) |
