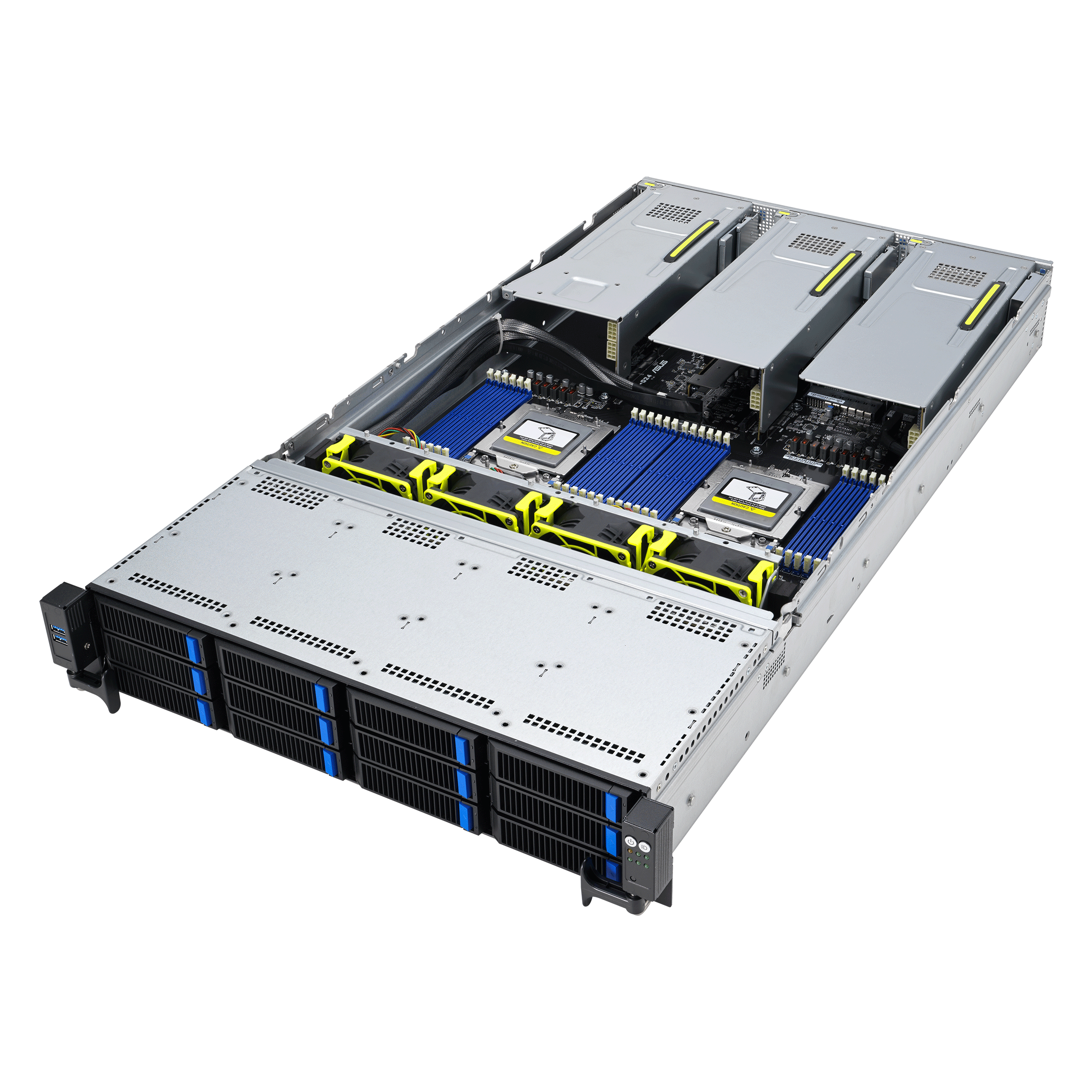

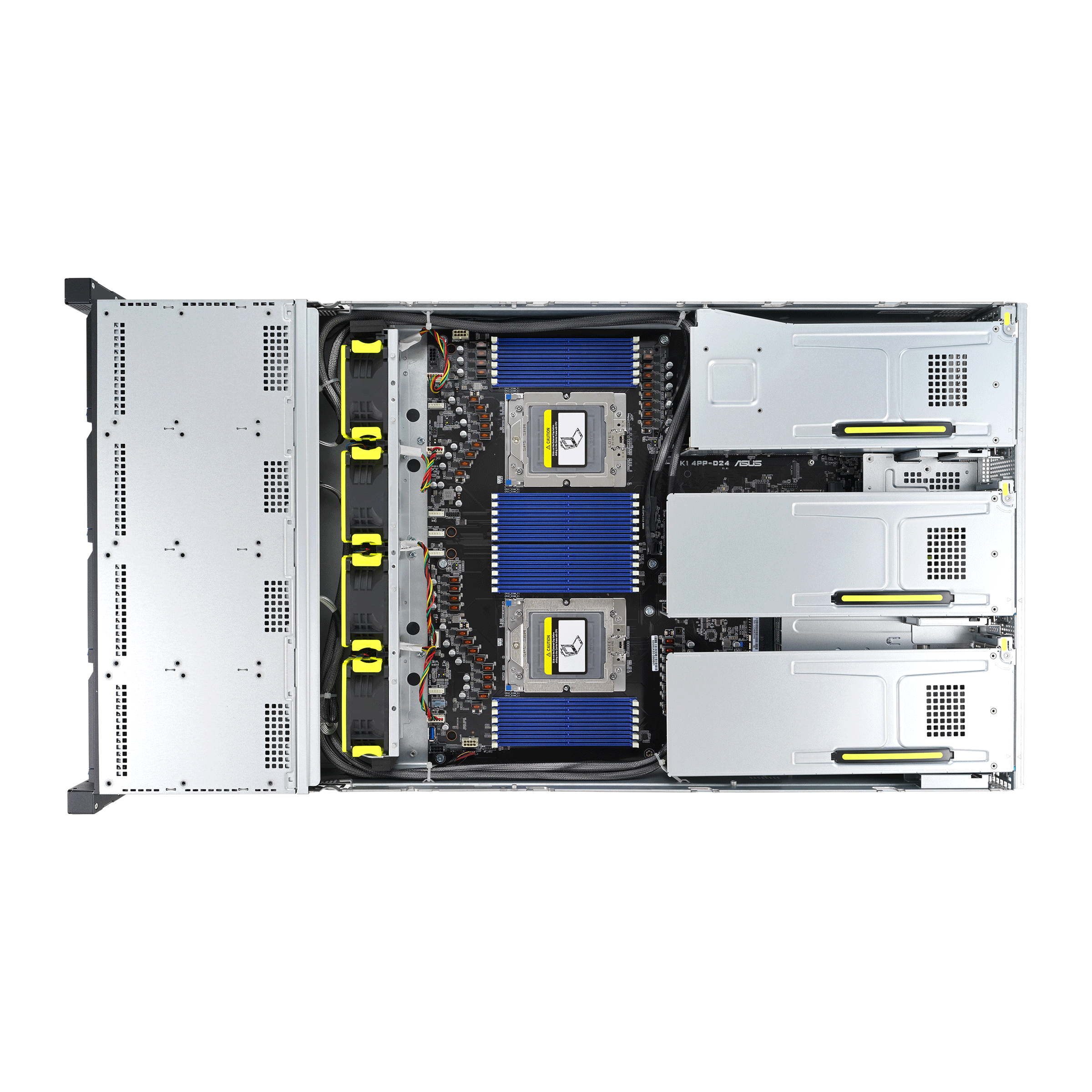

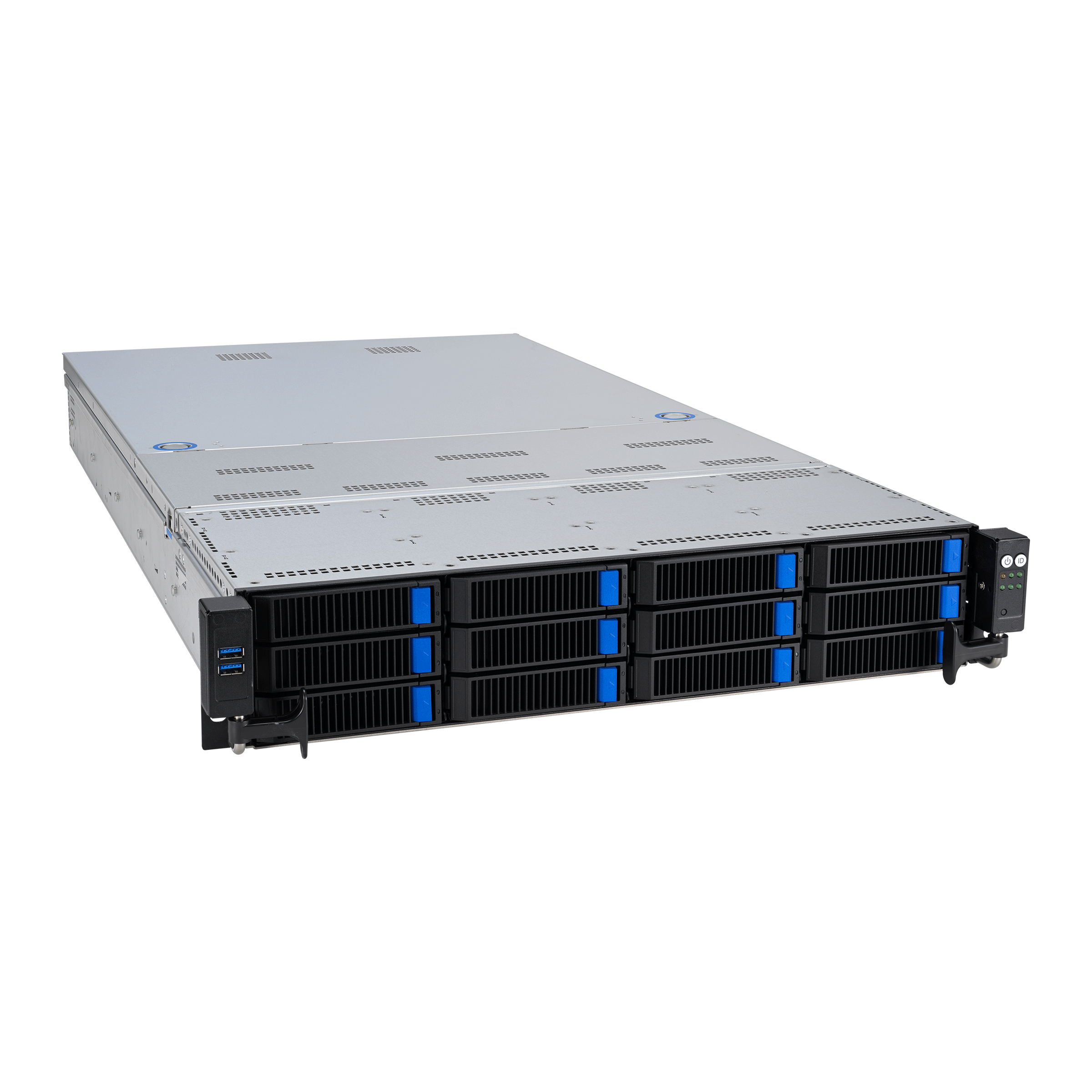

AMD EPYC™ 9004 双处理器 2U 服务器支持多达 24个 DIMM, 8个 NVMe, 9个 PCIe® 5.0 插槽, 2个 M.2, OCP 3.0, 4个双插槽 GPU, 以及 ASUS ASMB11-iKVM

  • 强大性能: 采用 AMD EPYC 9004 处理器搭配 128 Zen 4c 核心, 12通道, 最高可达 4800 MHz DDR5，每插槽最高支持 400W TDP
  • 出色的存储和扩展设计: 前面板共有 12 个组合 Tri-Mode NVMe/SATA/SAS 硬盘和 9 个PCIe 5.0，以提供更高的带宽和系统升级
  • 灵活的网络模块设计: 选配 2个 10 Gbps 或 4个 1 Gbps 板载 LAN 模块, 以及 OCP 3.0 模块及后侧 PCIe 5.0 插槽，实现更快的连接性能
  • 先进的风冷散热解决方案: 采用增强型卷风冷却(EVAC) 散热器支持更高的 TDP
  • 增强的 IT 基础设施管理: ASUS ASMB11-iKVM 远程控制可搭配 ASPEED AST2600, ASUS Control Center IT 管理软件和硬件级信任根解決方案

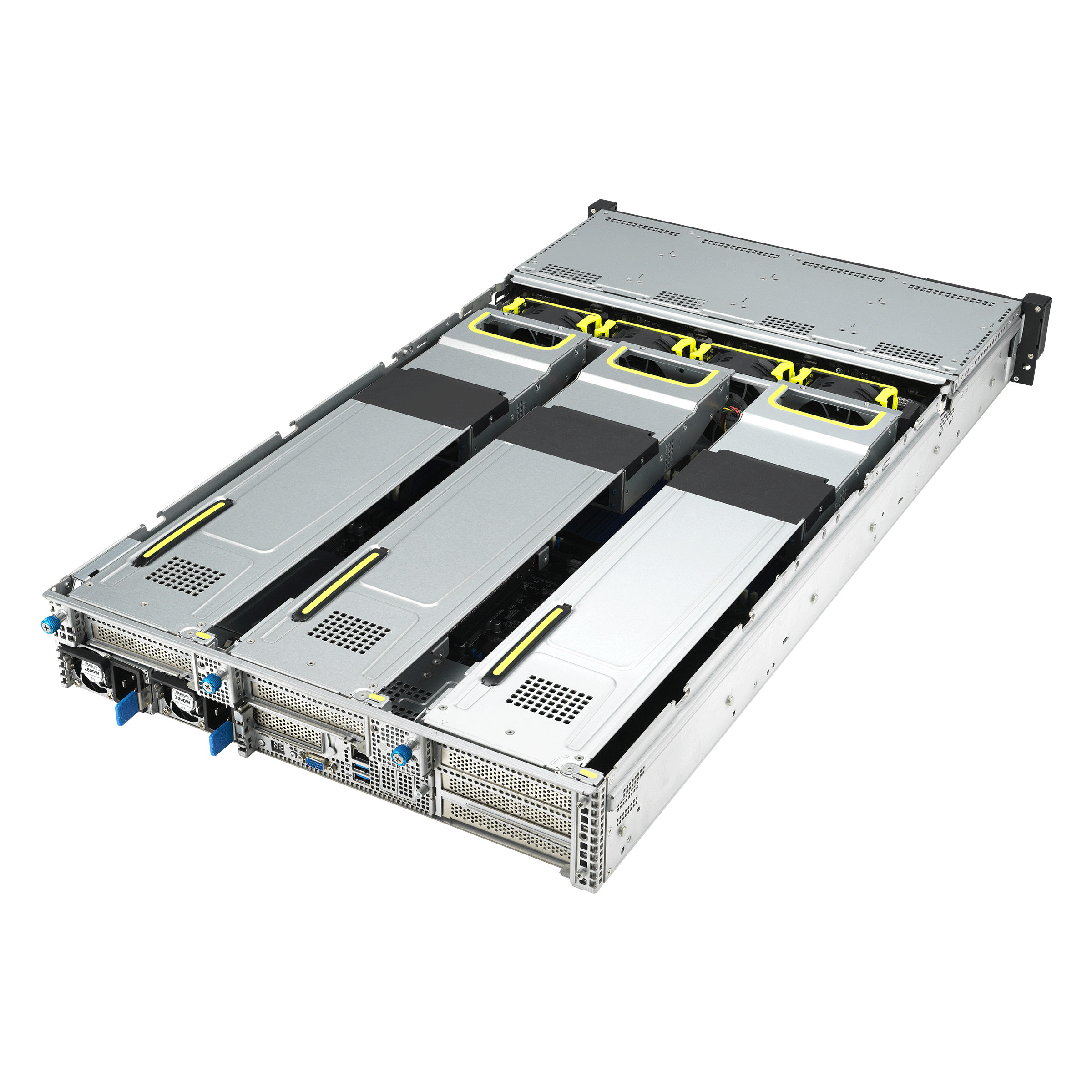

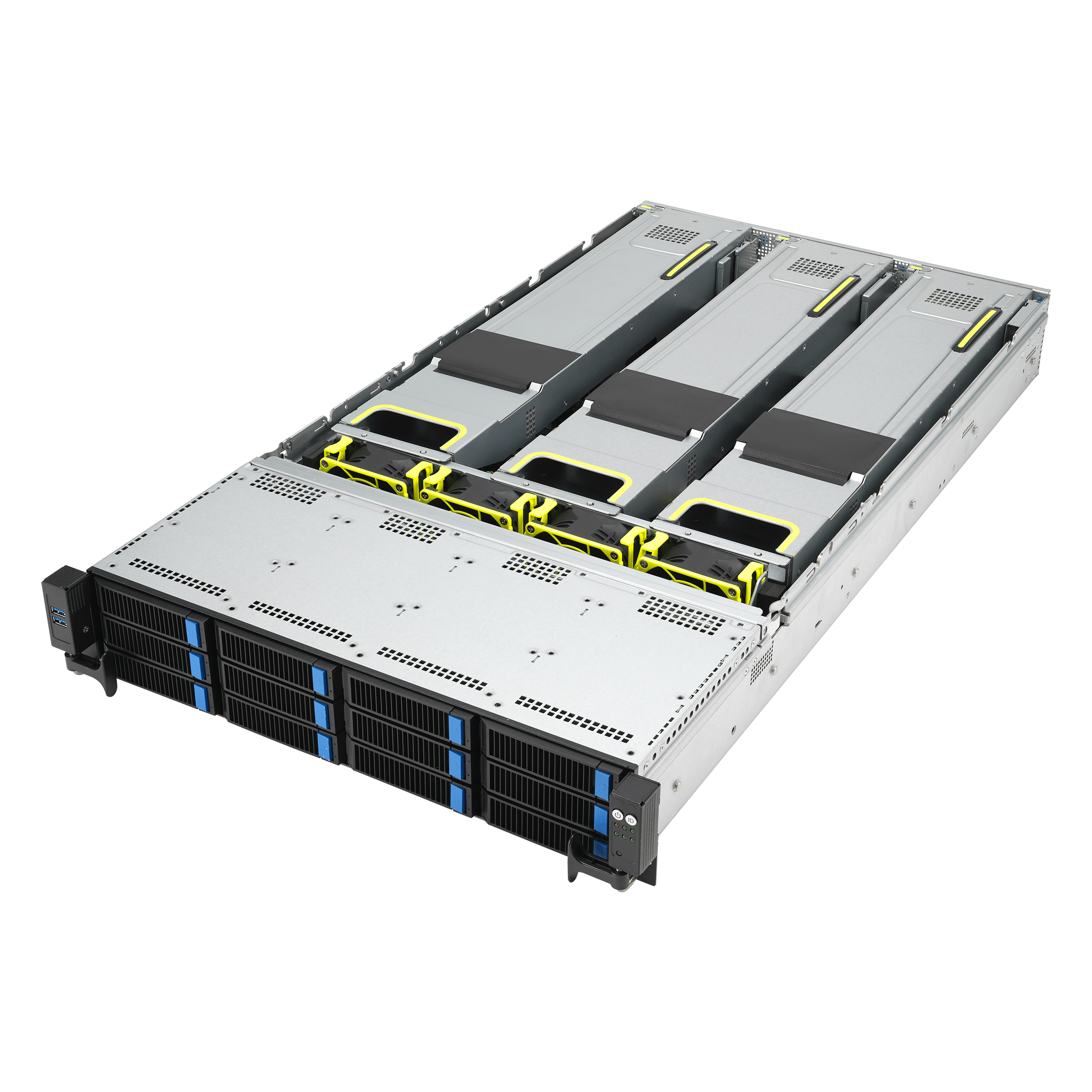

  • 助力加速 AI 和 HPC 工作负载: 高达4个双插槽 GPU, 包括 NVIDIA A100

规格参数

处理器 / 系统总线

2 x Socket SP5 (LGA 6096)

AMD EPYC™ 9004 Series (up to 400W)

4th Generation AMD EPYC Processors with AMD 3D V-Cache technology

代

E12
内存 Total Slots :

24 (12-channel per CPU, 1 DIMM per CPU)

Capacity :

Maximum up to 3072GB per socket

Memory Type :

DDR5 4800/4400 RDIMM/ 3DS RDIMM

Memory Size :

128GB, 64GB, 32GB RDIMM

128GB, 64GB, 32GB 3DS RDIMM
扩展槽

Up to 9 x Expansion slots + 1 x internal RAID slot

6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)

2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)

1 x PCIe Gen5 x16 (LPHL)

1 x PCIe Gen4 x8 (LP, internal)

*Installing GPU cards will occupied expansion slots.

*GPU SKU do not support OCP3.0
存储功能（视出货而定） SATA Controller :

8 x SATA 6Gb/s ports

2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)

SAS Controller :

Braodcom HBA CARD 9500-16i (Optional)

Broadcom MegaRAID 9540-8i (Optional)

Broadcom MegaRAID 9560-16i (Optional)

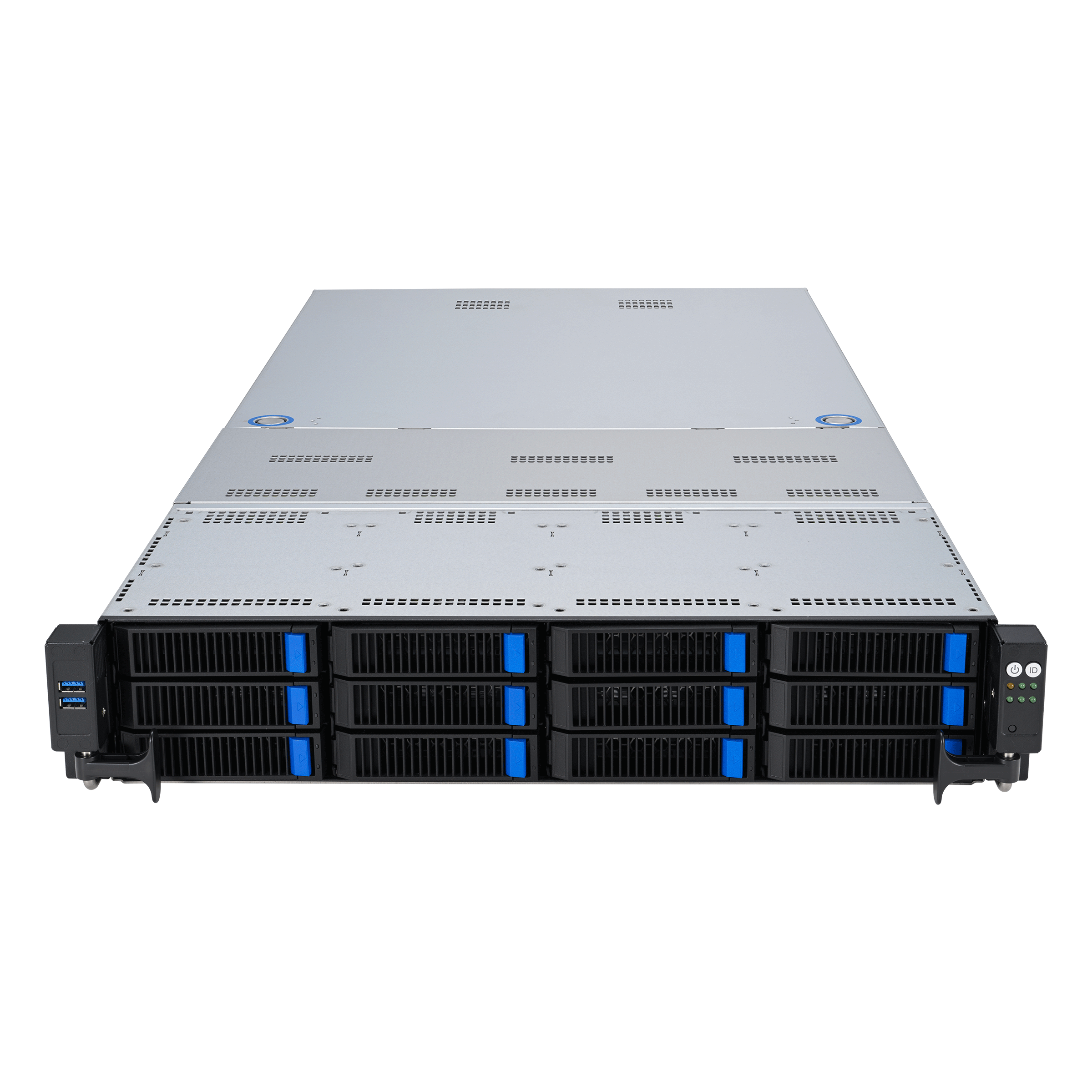

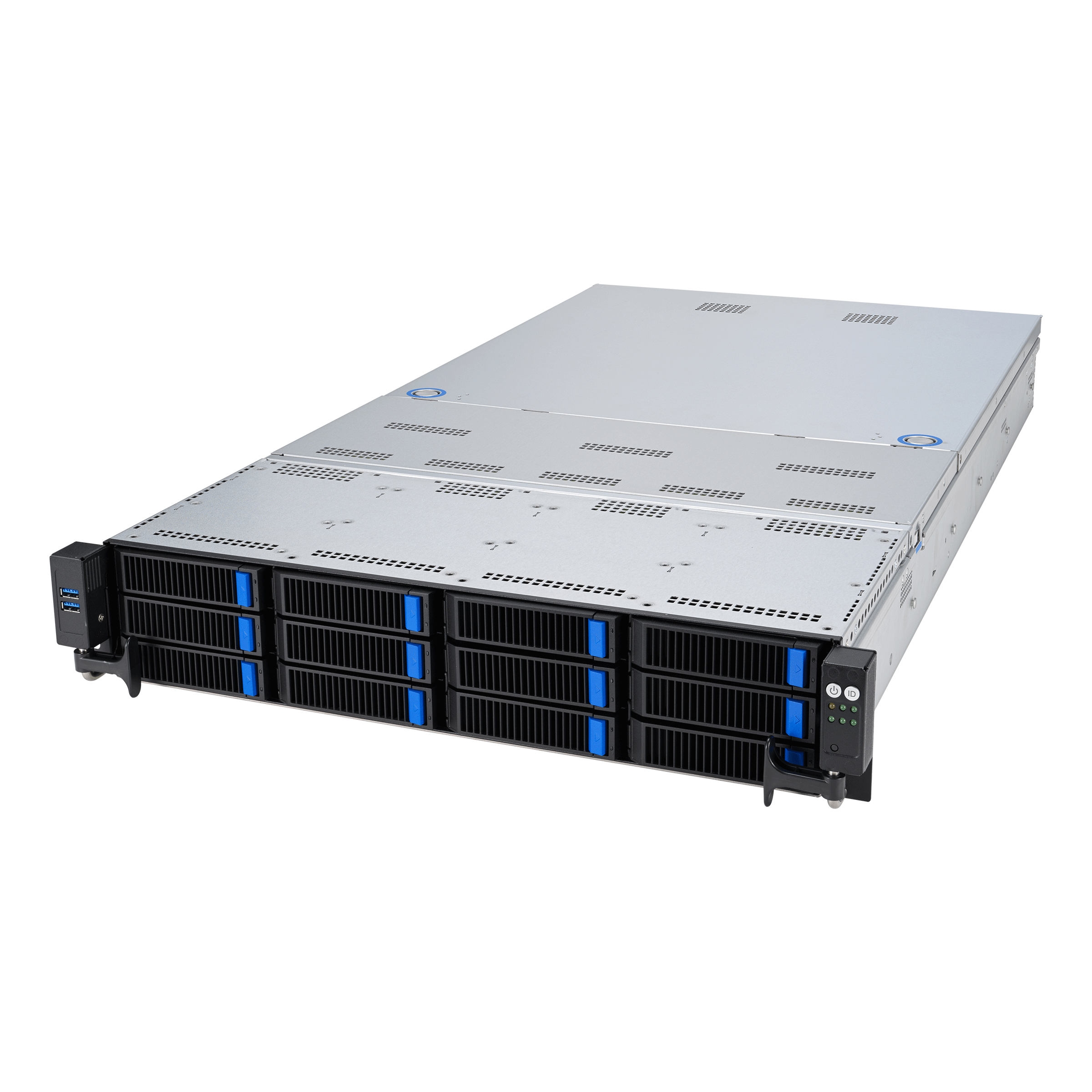

硬盘位 Front Bays:

12 x 3.5" Hot-Swap drive bays

Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*

*RAID card is required to support SAS hard drives

*SAS support only from SAS HBA/RAID Card

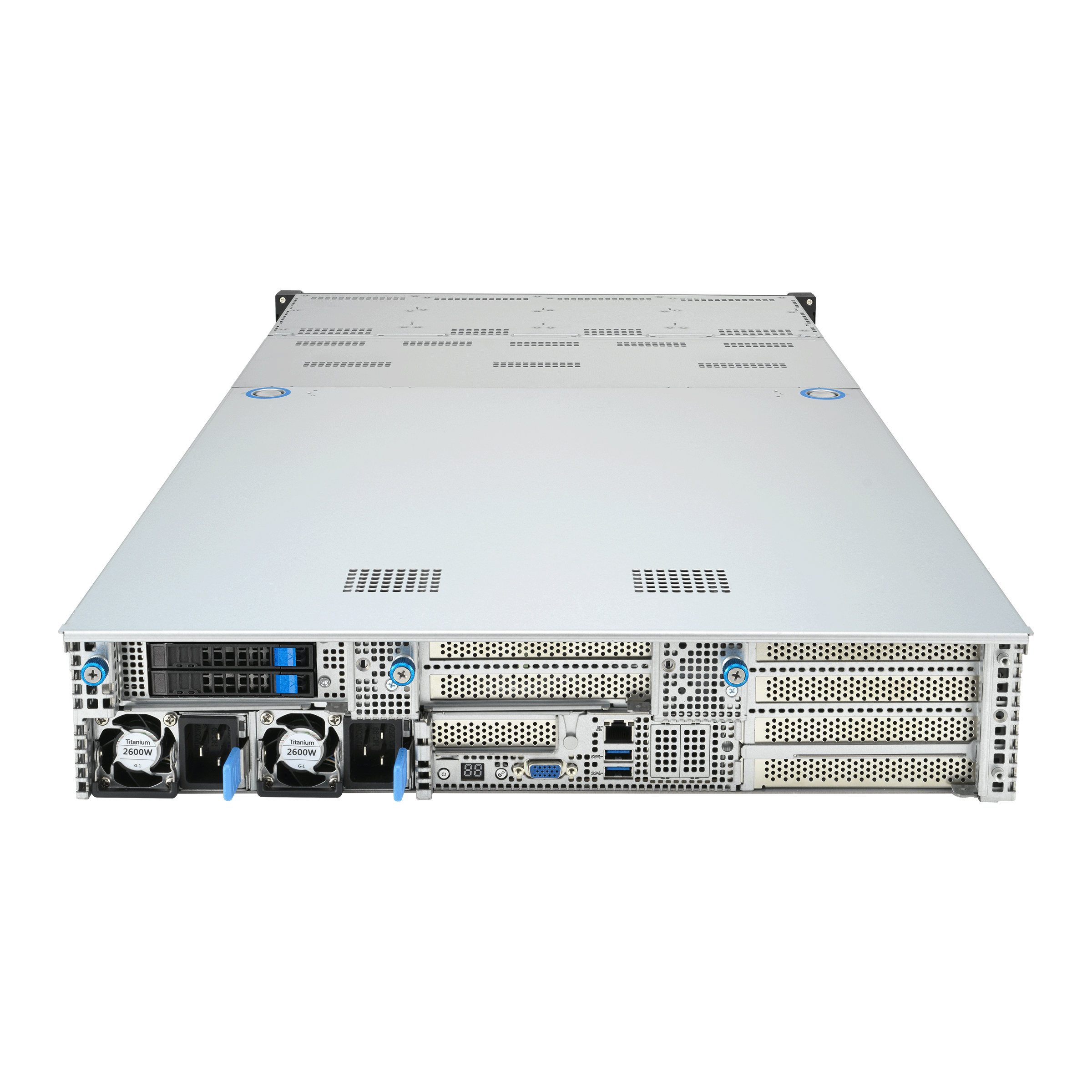

Rear Bays (Optional):

2 x 2.5" Hot-Swap drive bays (Will occupied 2 PCIe slots)

Support 2 x NVMe
系统风扇 4
网络(视出货而定)

Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN

Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN

Option 3: None x + 1 x Mgmt LAN
显示功能

Aspeed AST2600 64MB
支持多显卡

NVIDIA H100 80GB PCIe * 4

NVIDIA L40 48GB * 4

Nvidia RTX 6000 ADA 48GB * 4

Nvidia L4 24GB * 4

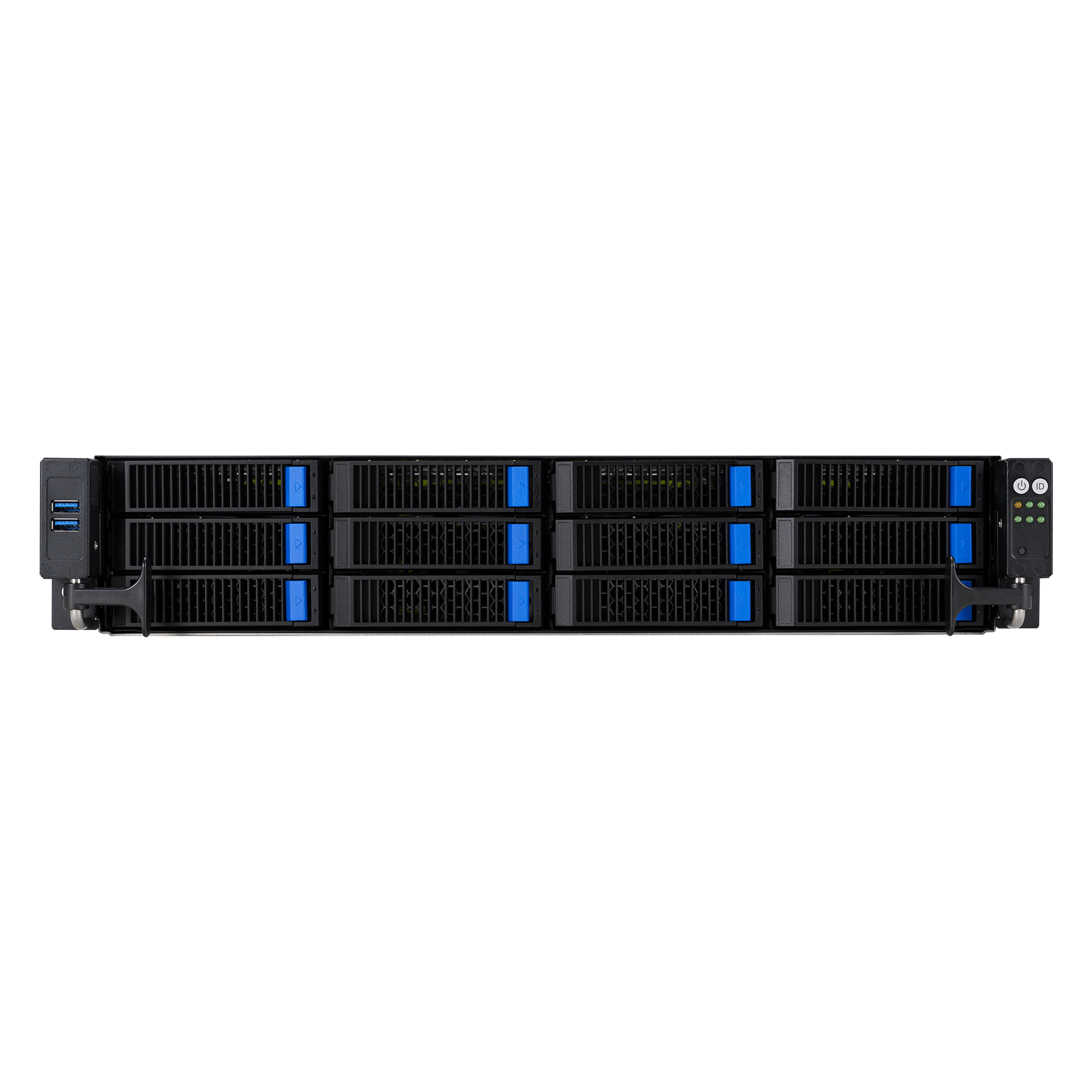

前置 I/O 接口

2 x USB 3.2 Gen1 ports

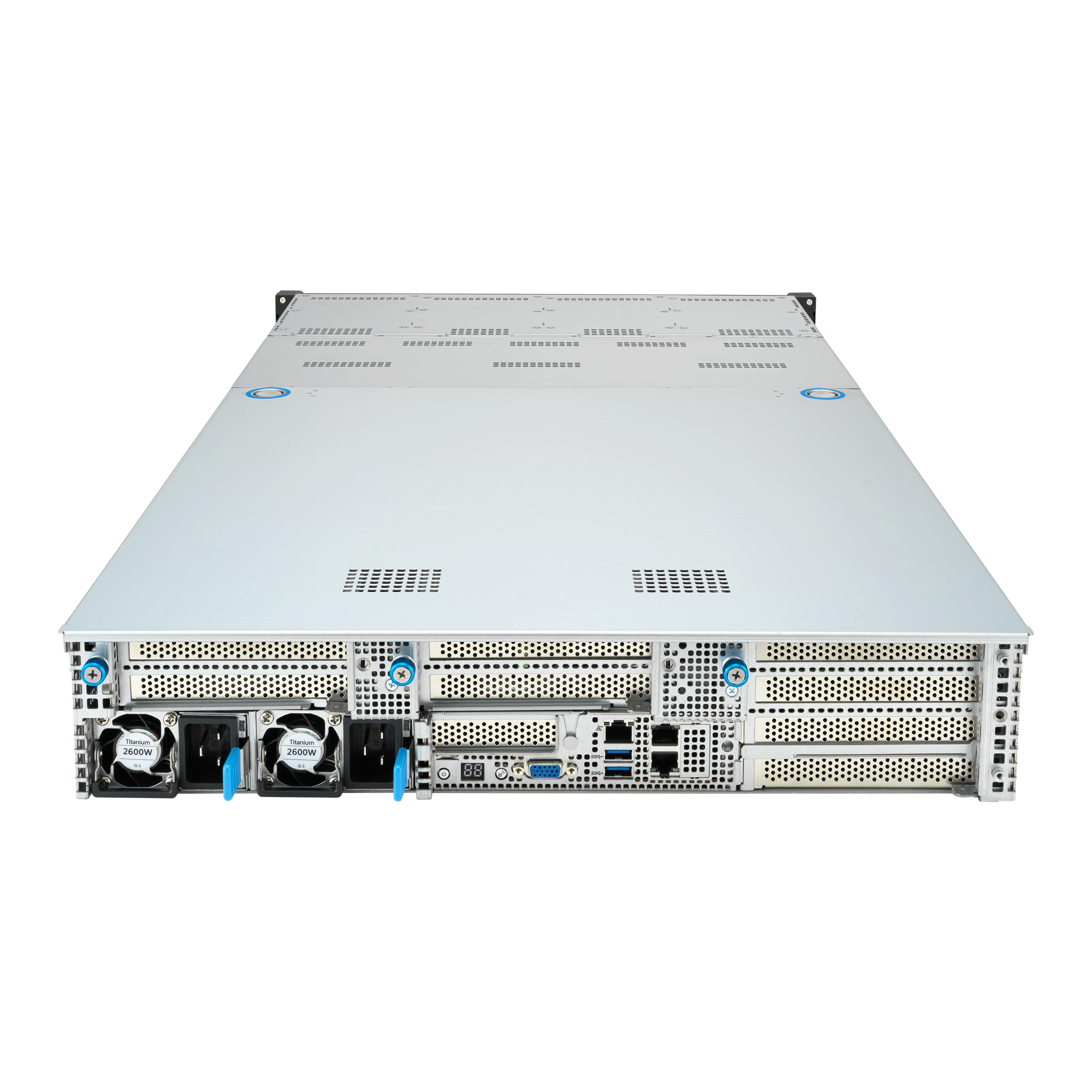

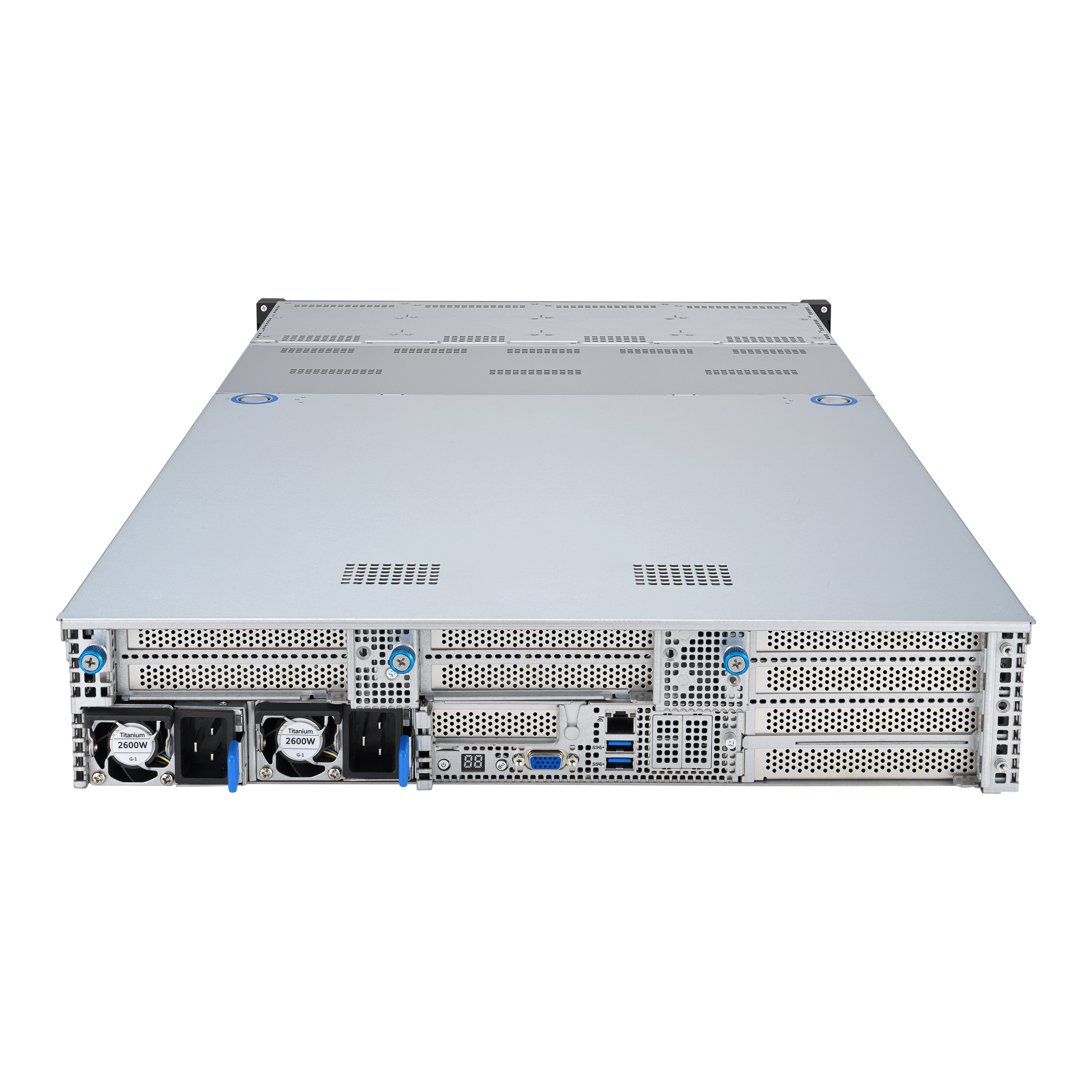

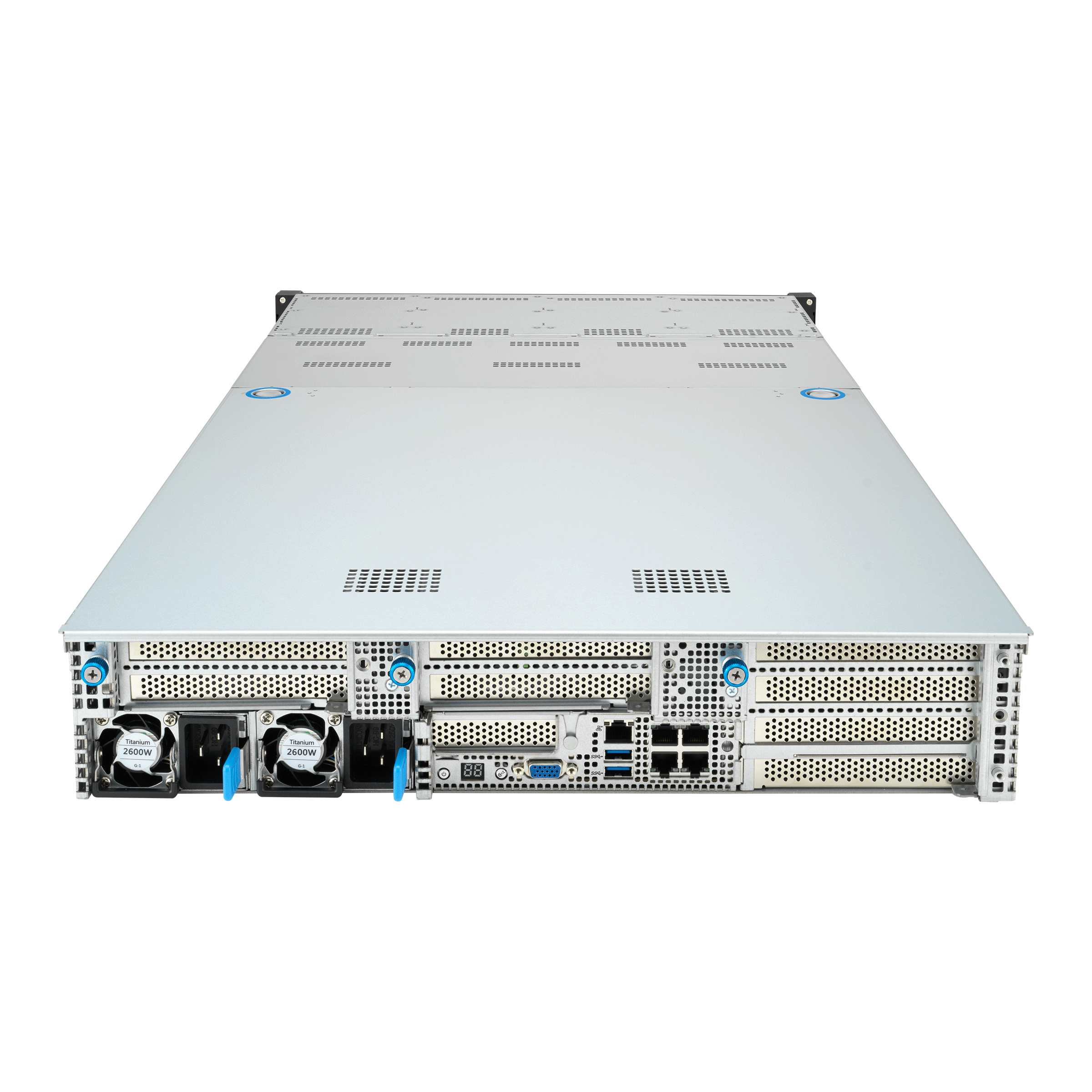

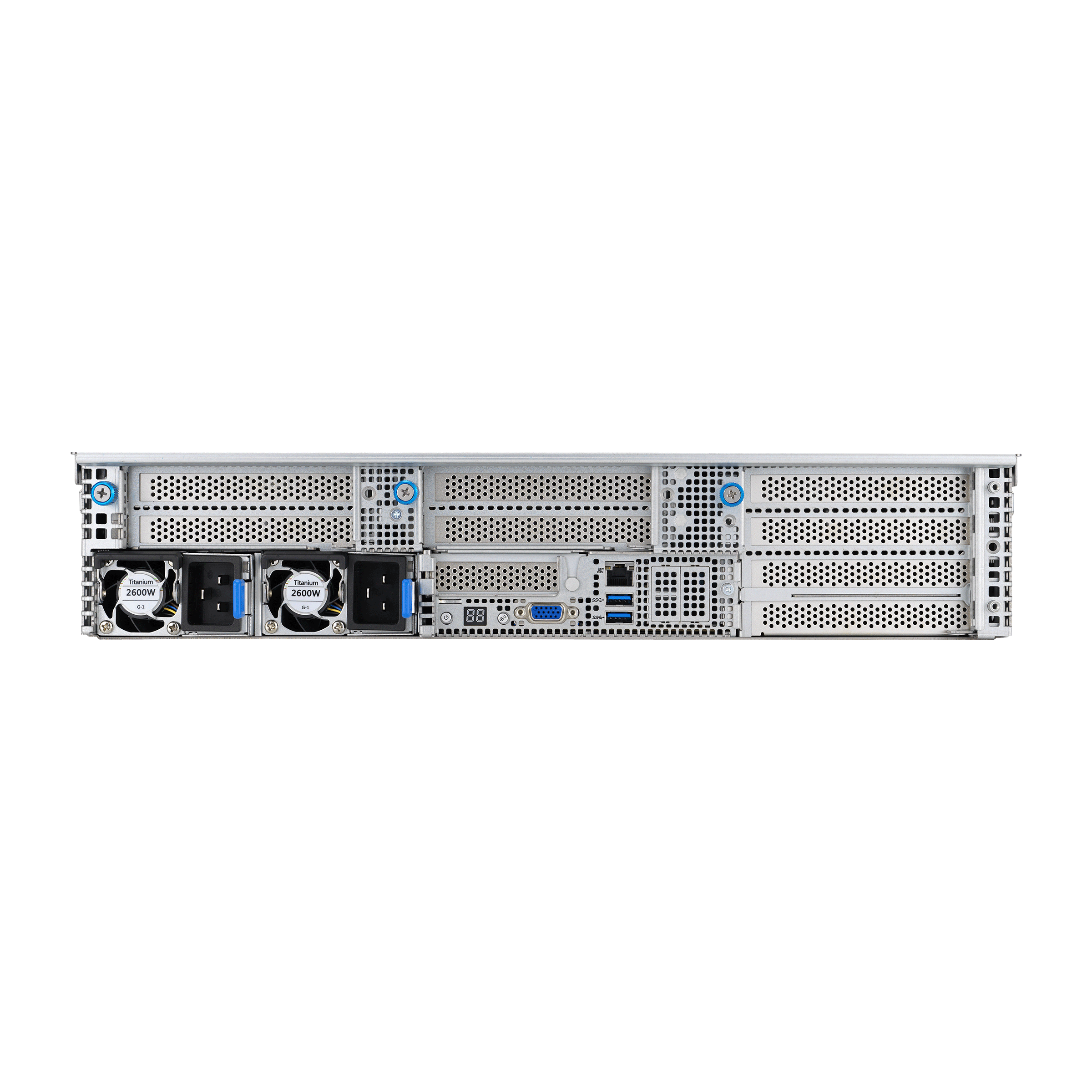

背部 I/O 接口

2 x USB 3.2 Gen1 ports

1 x VGA port

1 x RJ-45 Mgmt LAN port

2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)

1 x OCP3.0 port (Optional)

*GPU SKU do not support OCP3.0.
开关/LED Front Switch/LED:

1 x Power Switch (w/ LED)

1 x Reset Switch

1 x Location Switch (w/ LED)

1 x HDD Access LED

1 x Message LED LAN 1-4 LED (on NIC module)

Rear Switch/LED:

1 x Port 80 LED (Q-Code)

1 x Power Switch w/ LED

1 x Location Switch w/LED

1 x Message LED
支持操作系统

Windows Server 2019

Windows Server 2022

RHEL 8.X

RHEL 9.X

SUSE Enterprise 15 SP3

Ubuntu 20.04 LTS

Ubuntu 22.04 LTS

ESXi 8.0
管理功能

On-Board ASMB11-iKVM for KVM-over-IP

ASUS Control Center Enterprise (Optional)
合规性认证

BSMI, CE, CB, C-Tick, FCC(Class A)
外形尺寸

840mm x 449mm x 88.1mm

33.07" x 17.68" x 3.47"

2U
重量

Net Weight : 19.3KG

Gross Weight : 25.77KG
电源

1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply

1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply

Rating:

100-127/220-240Vac,12A/9.5A(x2),50/60Hz

100-127/240Vac,13.8A/16A(x2), 50/60Hz

220-240Vac, 10A(x2), 50/60Hz
环境

Operating temperature: 10°C ~ 35°C

Non operating temperature: -40°C ~ 60°C

Non operating humidity: 20% ~ 90% ( Non condensing)
可选配件 Heat Sink:

Standard Cooling Solution

Enhanced Volume Air Cooling Solution.

Rail Kit:

Tool-less Friction Rail Kit

1.5U Height Full Extension Ball bearing Type Rail Kit

*Please consult sales if cable arm needed.

2U Front Bezel
CPU 散热器/ 冷却器 2
风扇 1 (For supporting GPU SKU, it will have external fan)

AMD EPYC™ 7003 2U 双插槽服务器支持 32 个 DIMM、四个双插槽 GPU、8 个 NVMe、9 个 PCIe 4.0 插槽、OCP 3.0、M.2 及 ASUS ASMB10-iKVM

  • 支持 AMD EPYC 7003 处理器含 64 核心、128 线程，每插槽支持高达 280 瓦 TDP
  • GPU 优化设计可搭载双插槽 GPU，以处理 AI 工作负载
  • 共 12 个存储托架可支持前面板 NVMe/SATA/SAS 驱动器，以提供大量存储设备及高传输性能
  • 搭载高达 9 个 PCIe® 4.0 插槽，以提供更高的带宽及更快的数据传输速率
  • 弹性的内建 LAN 模块设计可提供四个 1 Gb LAN 或两个 10 Gb LAN 选项
  • 弹性的风冷与水冷解决方案可协助数据中心达到更低的电力使用效率 (PUE) 及上佳的 TCO
  • 内建 ASUS ASMB10-iKVM 可搭配 ASPEED AST2600 控制器进行频外管理
  • 整合的 PFR FPGA 可做为平台信任根解决方案，以提供固件弹性

规格参数

处理器 / 系统总线

2 x Socket SP3 (LGA 4094) per Node

AMD EPYC™ 7003 Series

AMD EPYC™ 7002 Series

Max TDP : 280W

3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
代 E11
内存 Total Slots :

32 (8-channel per CPU, 16 DIMM per CPU)

Capacity :

Maximum up to 4096GB per socket

Memory Type :

Dual Channel DDR4 3200/2933 RDIMM

Dual Channel DDR4 3200/2933 LRDIMM

Dual Channel DDR4 3200/2933 LR-DIMM 3DS non ECC

Memory Size :

64GB, 32GB, 16GB RDIMM

128GB, 64GB LRDIMM

256GB, 128GB, 64GB LR-DIMM 3DS
扩展槽

Up to 9 x Expansion slots

2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)

1 x PCIe Gen4 x8, FHFL (CPU1 x1)

1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)

4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)

1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)

*Installing GPU cards will occupied expansion slots.
存储功能（视出货而定） Storage Controller :

8 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)

2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode

SAS Controller :

ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)

ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

Broadcom MegaRAID 9560-16i (Optional)
硬盘位

12 x 3.5" hot-swap drive bays (4x NVMe + 4x NVMe/SATA/SAS* + 4x SATA/SAS*)

2 x 2.5" hot-swap drive bays (2x NVMe)(optional rear bays) 2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)

*must with PIKE/RAID card
系统风扇

4
网络(视出货而定)

Option 1

1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN

or

Option 2

1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN

or

None x + 1 x Mgmt LAN
显示功能

Aspeed AST2600 with 64MB VRAM
支持多显卡

NVIDIA L40 48GB * 4

Nvidia RTX 6000 ADA 48GB * 4

Nvidia L4 24GB * 4
前置 I/O 接口

2 x USB 3.2 Gen1 ports

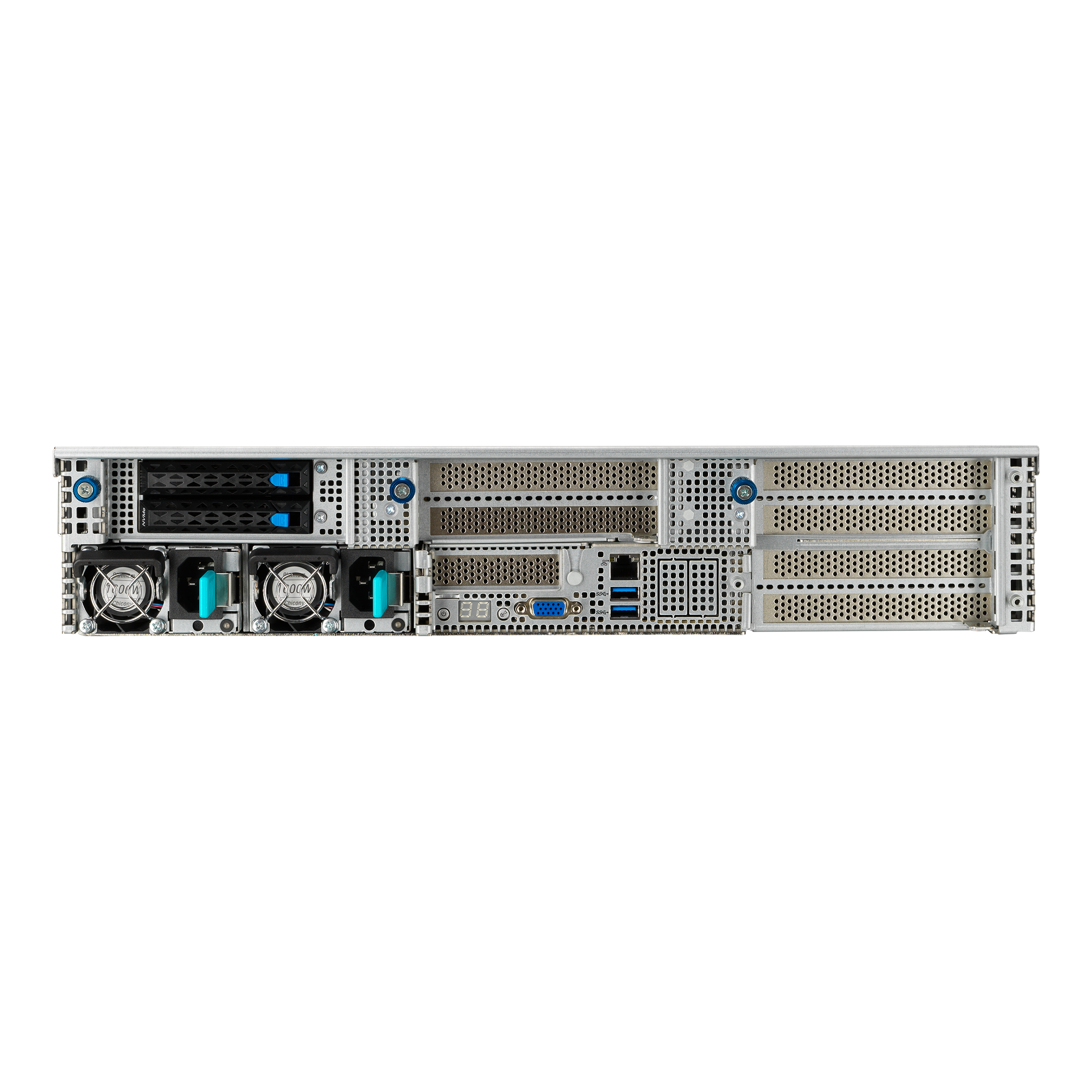

背部 I/O 接口

2 x USB 3.2 Gen1 ports

1 x VGA port

1 x RJ-45 Mgmt LAN port

1 x OCP3.0 port
开关/LED Front Switch/LED:

1 x Power switch (w/LED)

1 x Reset Switch

1 x Location Switch (w/LED)

1 x HDD Access LED

1 x Message LED LAN 1-4 LED (on NIC Module)


Rear Switch/LED:

1 x Power switch w/LED

1 x Port 80 LED(Q-Code)

1 x Location Switch w/LED

1 x Message LED
支持操作系统

Windows Server 2022

ESXi 7.0 U3

RHEL 8.X

Ubuntu 20.04 LTS

ESXi 8.0
管理功能

On-Board ASMB10-iKVM for KVM-over-IP

ASUS Control Center Enterprise (Optional)
合规性认证

BSMI, CE, FCC(Class A)
外形尺寸

840mm x 449mm x 88.1mm

33.07" x 17.68" x 3.47"

2U
重量

Net Weight : 18.195KG

Gross Weight : 23.235KG
电源

1+1 Redundant 1600W 80 PLUS Platinum Power Supply

Rating:

100-127/200-240Vac,13A/9.5A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)

200-240Vac,10A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China；100-127Vac, 12A only for NA)

1+1 Redundant 2400W 80 PLUS Titanium Power Supply

*2400W RPSU is required while choosing GPU SKU
环境

Operation temperature: 10℃ ~ 35℃

Non operation temperature: -40℃ ~ 60℃

Non operation humidity: 20% ~ 90% ( Non condensing)
可选配件

Standard Cooling Solution or

Water Cooling Solution
备注

*If only 1 CPU is installed, some functions might be not available.

*If PCIe expansion slot 3 choosing OCP3.0 option, slot 4 will be limited to support PIKE card only

*The quantity of expansion slots will reduce while installing GPU cards.
CPU 散热器/ 冷却器

2
风扇

1 (For supporting GPU SKU, it will have external fan)
