多 GPU 直立式服务器，拥有适用于企业和数据中心环境的电源效率
- 搭载第二代英特尔® 至强® 可扩展处理器和 ECC 内存，性能强大
- 采用灵活设计，通过服务器轨道套件安装在办公室或数据中心
- 搭载 ASUS Control Center，提高工作效率
- 支持备援 Platinum PSU，提供高电源效率
- 免工具组件更换设计，便于维护
- 支持多种显卡，包括 NVIDIA® Quadro® 和 AMD® CrossFireX™
- 高扩展能力，具备七个 PCIe 插槽
- 支持 12 个 ECC 内存，加快系统效能
规格参数
| 处理器 / 系统总线 |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) UPI (10.4 GT/s) |
|---|---|
| 核心逻辑 | Intel® Lewisburg PCH C621 |
| 内存 |
Total Slots :
12 (6-channel per CPU, 6 DIMM per CPU) Option 1 Capacity :Maximum up to 1536GB RDIMM Memory Type :DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2933/2666 LR-DIMM 3DS Memory Size :64GB, 32GB, 16GB, 8GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| 扩展槽 |
Total PCIe Slots: 7 Slots 2 x PCIe 3.0 x16 slots (Gen3 x16 link), FH, FL (CPU2) 2 x PCIe 3.0 x16 slots (single Gen3 x16 link, dual Gen3 x8/x8 link), FH, FL (CPU1) 2 x PCIe 3.0 x16 slots (Gen3 x8 link), FH, FL (CPU2) 1 x PCIe 3.0 x16 slot (Gen3 x16 link), FH, HL (CPU1) |
| 存储功能（视出货而定） |
SATA Controller :
Intel® C621 8 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SATA Controller :ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports SAS Controller :ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| 硬盘位 |

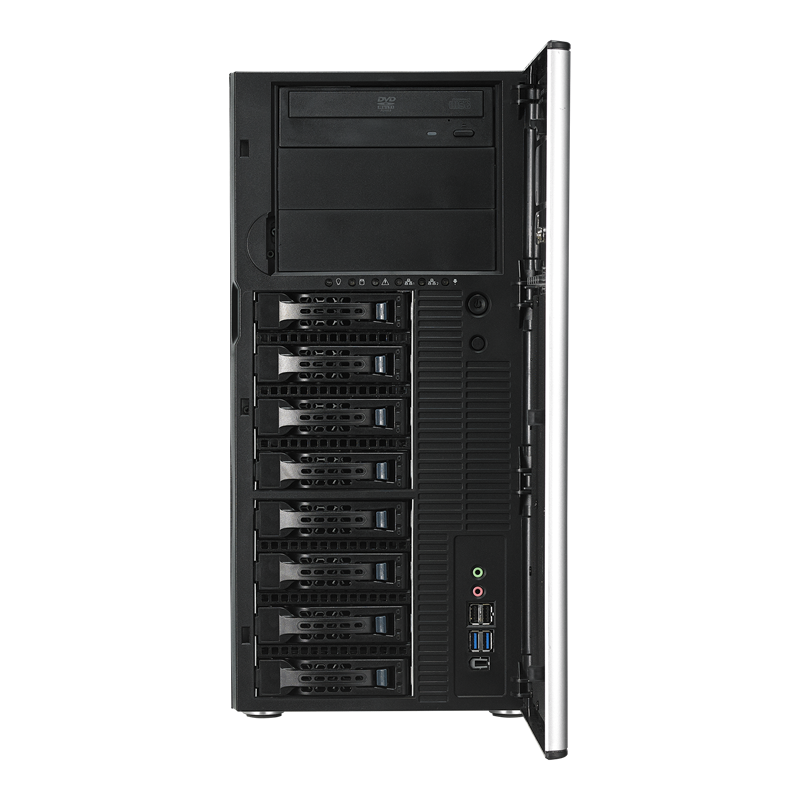

8 x 3.5” Hot-swap Storage Bays 1 x M.2 Socket 3, supporting type 22110/2280/2260/2242 (PCIe Gen3 x4 and SATA mode) |
| 辅助存储器 FDD/CD/DVD |
3 x 5.25" media bays (Options: No Device / DVD-RW / DVD-ROM) |
| 网络功能 |
2 x Intel® I210AT |
| 显卡 |
Aspeed AST2500 with 64MB VRAM |
| 前置 I/O 接口 |
1 x Headphone jack 1 x Microphone jack 2 x USB 2.0 ports 2 x USB 3.1 Gen 1 ports |
| 背部 I/O 接口 |

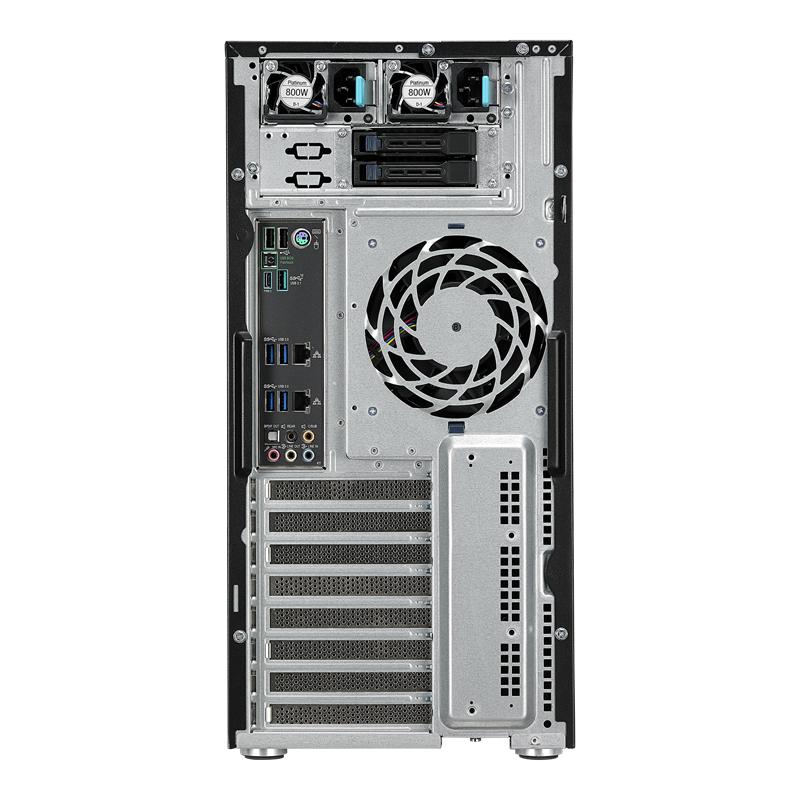

2 x USB 3.1 Gen2 ports (1 x Type-A and 1 x Type-C™) 4 x USB 3.1 Gen1 ports 2 x USB 2.0 ports (1 supports USB BIOS Flashback) 1 x USB BIOS Flashback button 1 x PS/2 and keyboard Mouse port 2 x RJ-45 LAN ports 1 x Optical S/PDIF Out port 5 x Audio Jacks 1 x COM port bracket 1 x VGA port bracket (optional) |
| Switch/LED |
Front Switch/LED:
1 x Power switch 1 x Location LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED 1 x Power LED LAN 1-2 LED |
| OS 支持 |
RHEL 6.9 SUSE Enterprise 12 SP4 Ubuntu 17.04 Windows Server 2016 |
| 管理解决方案 |
ASUS Control Center Enterprise (Optional) ASMB9-iKVM for KVM-over-IP (optional) |
| 合规性认证 |
BSMI, CE, RCM, FCC(Class A) |
| 外形尺寸 |
455mm x 217.5mm x 545mm 17.91" x 8.54" x 21.45" |
| 重量 |
Net Weight: 18.33 Kg Gross Weight: 23.12 Kg |
| 电源 |
800W 80PLUS Platinum Redundant Power Supply Module Rating: 100-127/200-240Vac,9A / 4.5A, 50 / 60Hz, Class I 1300W 80PLUS Platinum Redundant Power Supply Module Rating: 100-127/200-240Vac,13.8A / 8.5A, 47 / 63Hz, Class I |
| 环境 |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
